Internal Epoxy Lining Pipe

Tianjin Brisk Metalwork Co., Ltd. is one of the leading manufacturers and suppliers of internal epoxy lining pipe in China. We have world-leading production equipment and strong manufacturing capabilities. Please feel free to buy bulk durable internal epoxy lining pipe from our factory.

 PRODUCT

Tianjin Brisk Steel focus on produce and supply hollow section and steel pipe

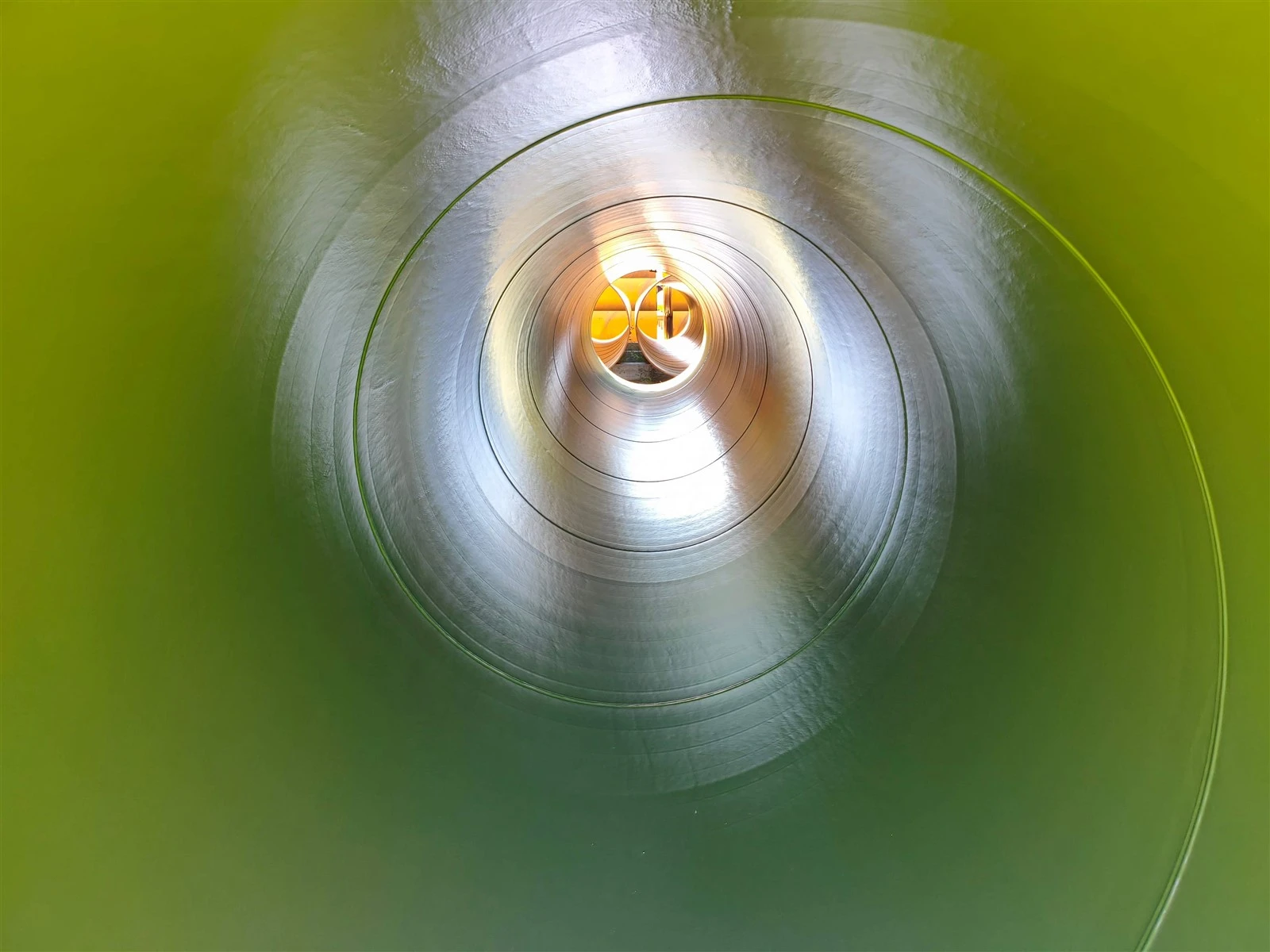

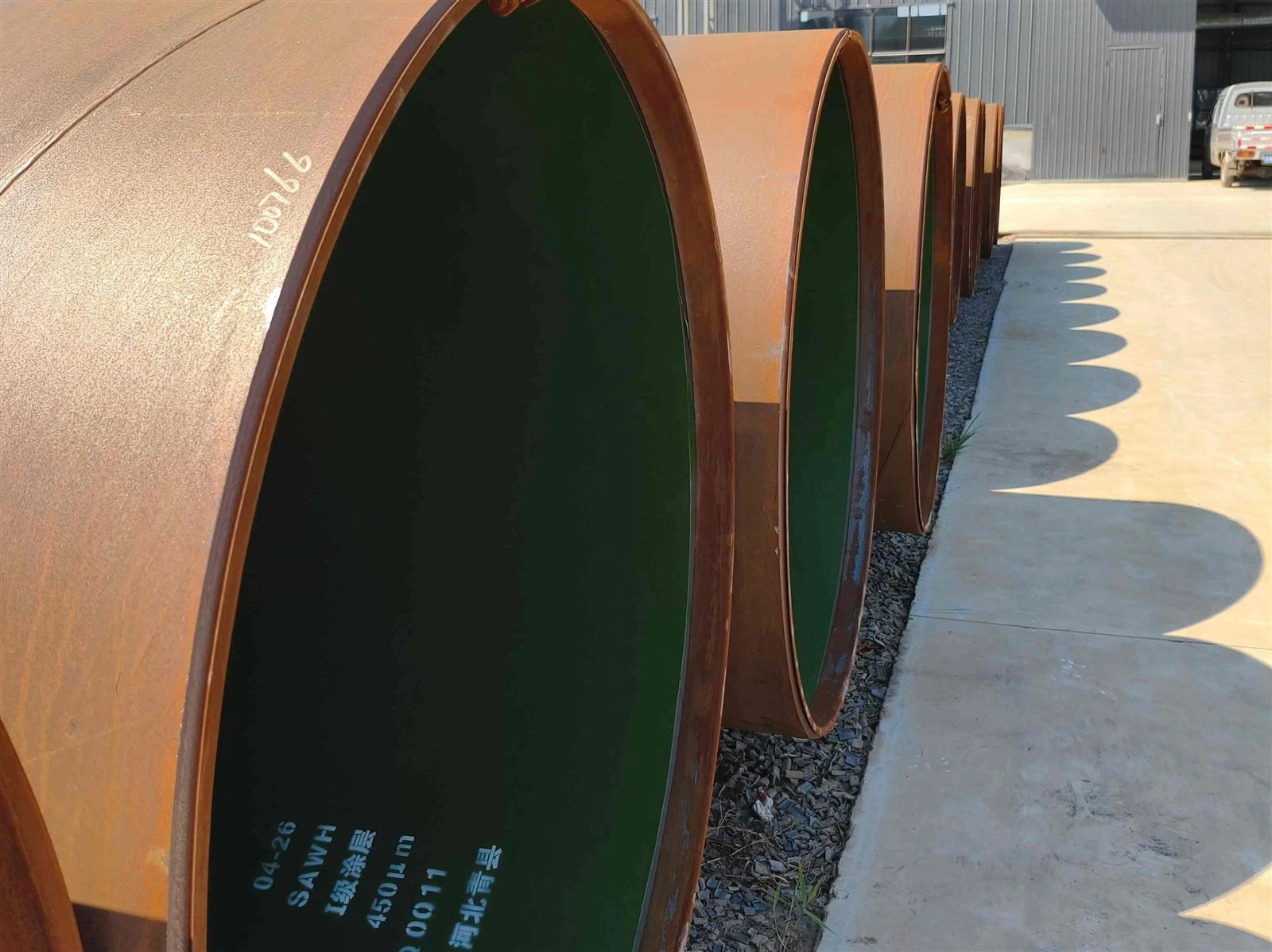

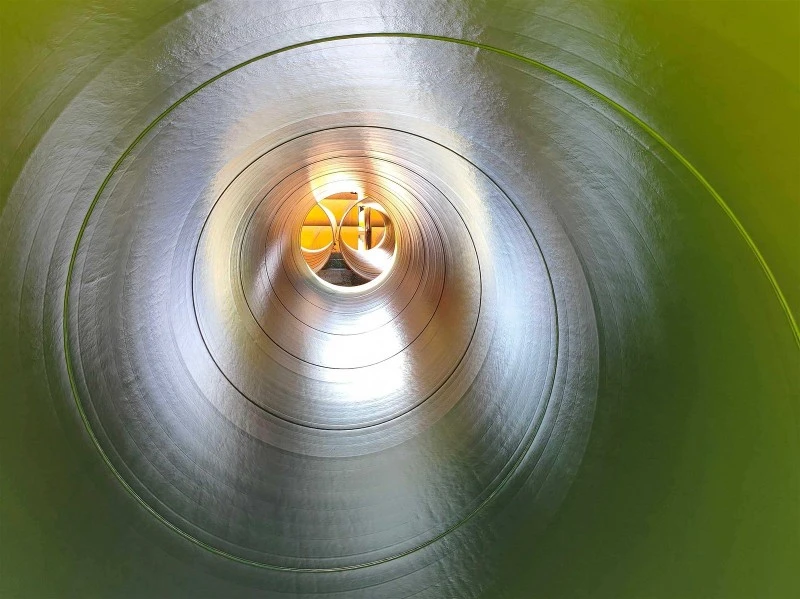

Internal epoxy lining pipe is a steel pipe with a protective epoxy coating applied to the internal surface of the pipe.

Unlike external pipeline coatings such as 3PE, 3PP and external FBE, internal epoxy lining is designed to protect the inside surface of the steel pipe from water-related corrosion and to provide a smooth internal flow surface.

Internal epoxy lining is widely considered for:

• Potable water pipelines
• Drinking water transmission pipelines
• Municipal water pipelines
• Water transmission systems
• Raw water pipelines
• Wastewater pipelines
• Industrial water pipelines
• Desalinated water pipelines
• Seawater and saltwater applications
• Water treatment infrastructure

The primary purpose is to create a durable barrier between the steel substrate and the transported water or wastewater.

Internal Epoxy Lining Standards for Water Pipelines

Different markets and applications use different standards.

• AWWA C210-24: covers liquid-epoxy coatings and linings for steel water pipe and fittings. The standard addresses shop- and field-applied liquid epoxy systems for steel water pipe and fittings used underground or underwater under normal construction conditions.

•  AWWA C213-22: covers fusion-bonded epoxy coatings and linings for steel water pipe and fittings. It is another important reference when an FBE-based internal lining system is specified.

Internal epoxy lining has another important benefit for water transmission pipelines: it creates a smooth internal surface. Compared with a rough or corroded steel surface, a properly applied epoxy lining can provide a smoother flow path.

This can help:

• Reduce internal surface roughness
• Reduce friction losses
• Improve hydraulic performance
• Reduce turbulence associated with surface irregularities
• Help maintain flow efficiency

Therefore better to describe epoxy lining as providing a smooth, corrosion-resistant internal surface rather than promising a fixed percentage reduction in energy consumption.

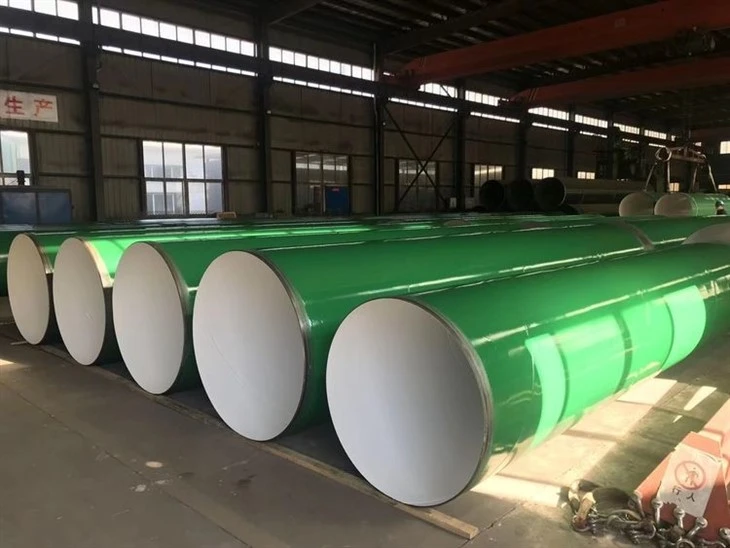

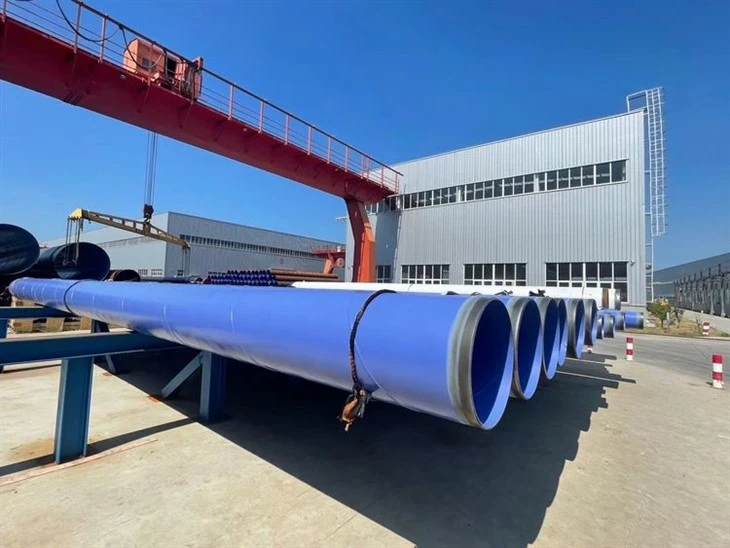

A typical buried water transmission pipe can use:

Internal Surface

Epoxy Lining Purpose:

• Protect against internal water corrosion
• Provide a smooth hydraulic surface
• Protect water-contact steel
• Improve internal durability

External Surface

3PE Coating Purpose:

• Protect against soil corrosion
• Resist moisture
• Provide mechanical protection
• Protect the steel pipe during buried installation

This is a highly logical coating configuration for many buried steel water transmission projects.

Internal Epoxy + External 3PE vs Internal Epoxy + External FBE
