Tianjin Brisk Metalwork Co., Ltd. is one of the leading manufacturers and suppliers of sawl pipe in China. We have world-leading production equipment and strong manufacturing capabilities. Please feel free to buy bulk durable sawl pipe from our factory.
PRODUCT
Tianjin Brisk Steel focus on produce and supply hollow section and steel pipe
What Standard Can We Offer For LSAW Pipe?
| Standard | Grade |
|---|---|
| API 5L LSAW Pipe | API 5L Grade B,X42,X52,X60,X65,X70;PSL1/PSL2 |
| ASTM LSAW Pipe | A671,A672,A53 |
| EN LSAW Pipe | EN 10219,EN 10207 |
| DIN LSAW Pipe | DIN 17172 |
LSAW Pipe Size Chart: Dimensions & Wall Thickness
| NPS | DN | Outside Diameter (mm) | Common Wall Thickness (mm) | Standard Length (m) |
|---|---|---|---|---|
| 16" | DN400 | 406.4 | 6.0–32.0 | 6 / 12 |
| 18" | DN450 | 457.2 | 6.0–35.0 | 6 / 12 |
| 20" | DN500 | 508.0 | 6.0–40.0 | 6 / 12 |
| 22" | DN550 | 558.8 | 6.0–40.0 | 6 / 12 |
| 24" | DN600 | 609.6 | 6.35–50.0 | 6 / 12 |
| 26" | DN650 | 660.4 | 7.11–50.0 | 6 / 12 |
| 28" | DN700 | 711.2 | 7.92–50.0 | 6 / 12 |
| 30" | DN750 | 762.0 | 7.92–60.0 | 6 / 12 |
| 32" | DN800 | 812.8 | 7.92–60.0 | 6 / 12 |
| 34" | DN850 | 863.6 | 8.0–60.0 | 6 / 12 |
| 36" | DN900 | 914.4 | 9.53–65.0 | 6 / 12 |
| 40" | DN1000 | 1016.0 | 9.53–70.0 | 6 / 12 |
| 42" | DN1050 | 1066.8 | 9.53–70.0 | 6 / 12 |
| 44" | DN1100 | 1117.6 | 10.0–75.0 | 6 / 12 |
| 48" | DN1200 | 1219.2 | 10.0–75.0 | 6 / 12 |
| 52" | DN1300 | 1320.8 | 12.0–80.0 | 6 / 12 |
| 56" | DN1400 | 1422.4 | 12.0–80.0 | 6 / 12 |
| 60" | DN1500 | 1524.0 | 12.7–80.0 | 6 / 12 |
| 64" | DN1600 | 1625.6 | 14.0–100.0 | 6–18 |
In what scenarios is LSAW pipe primarily used?
LSAW Pipe is mainly used in large-diameter, high-strength pipeline and structural engineering projects, particularly where strict requirements for dimensional accuracy, weld quality, and pressure resistance apply
Main Applications of LSAW Pipe

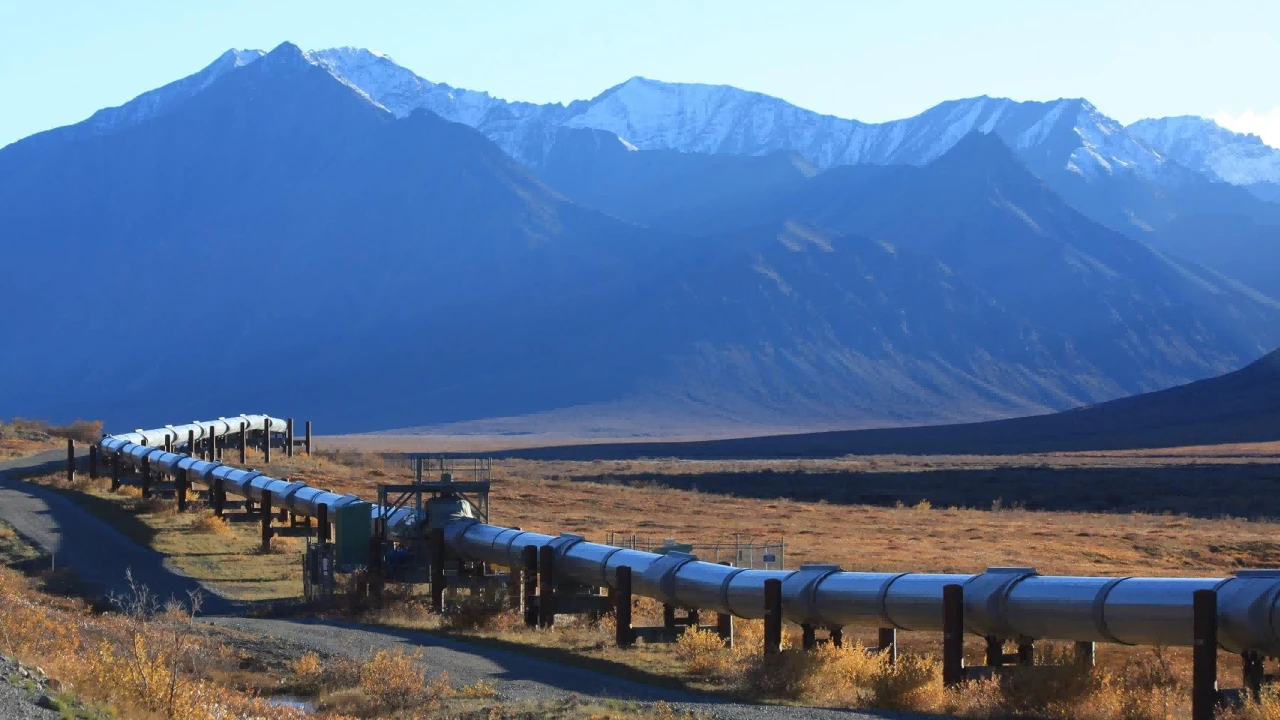

| Oil & Gas Transmission | For long-distance transportation of crude oil, natural gas, and refined petroleum products. |
| Water Transmission | Used in municipal water supply, drinking water, seawater, irrigation, and large-scale water diversion projects. |
| Structural Engineering | Applied in bridges, building structures, offshore platforms, and large steel structures. |

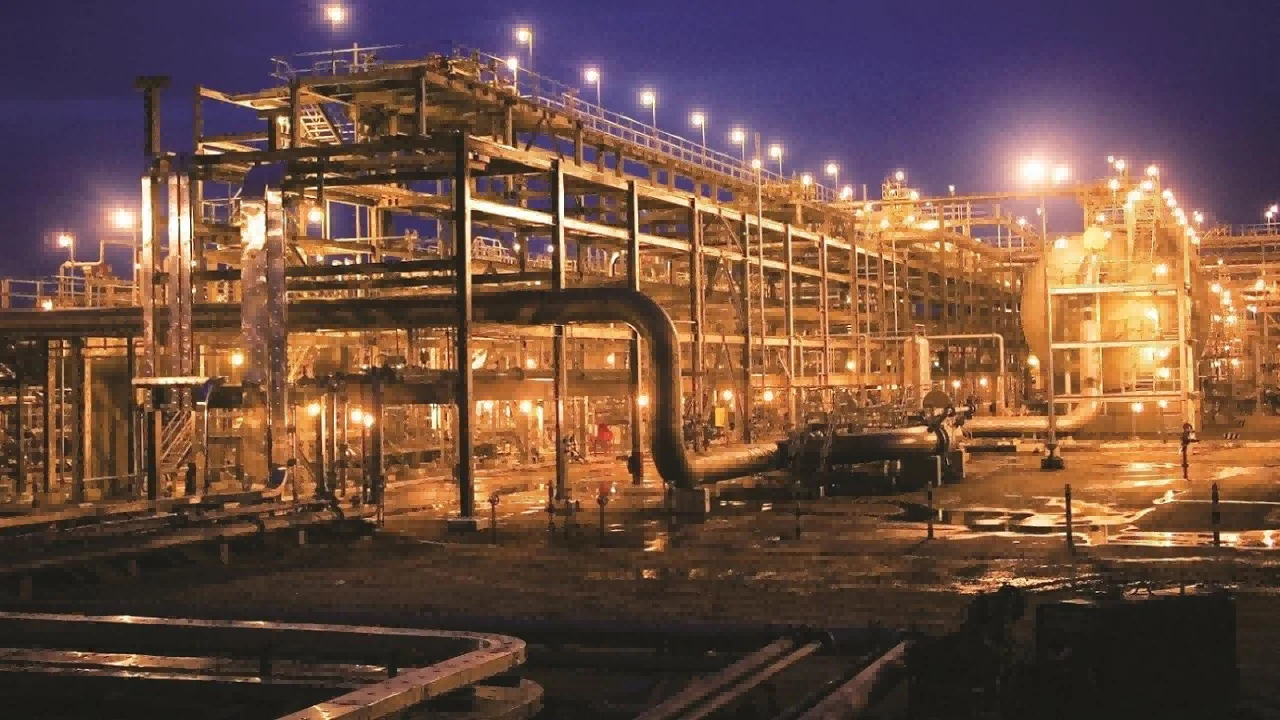

| Industrial Piping | Used for transporting fluids in power plants, chemical plants, refineries, and other industrial facilities. |
| Offshore & Marine Engineering | Suitable for offshore pipelines, marine structures, and subsea engineering projects. |
| Pile & Foundation Projects | Used as large-diameter steel piles for bridges, ports, buildings, and other heavy infrastructure. |
| District Heating & Utility Pipelines | Applied in large-scale heating, cooling, and utility transmission systems. |
Anti-Corrosion Surface Treatments for LSAW Pipe
| 3PE Coating (Three-Layer Polyethylene) | Widely used for buried oil, gas, and water transmission pipelines, providing excellent resistance to corrosion, moisture, and soil environments. |
| FBE Coating (Fusion Bonded Epoxy) | Suitable for oil & gas pipelines, water pipelines, and harsh environments, offering strong adhesion and chemical resistance. |
| 3PP Coating (Three-Layer Polypropylene) | Designed for higher-temperature pipeline applications where greater thermal resistance is required. |
| Internal Epoxy Lining | Applied to the internal surface of water and fluid transportation pipes to prevent internal corrosion and reduce friction. |
LSAW Pipe End Treatments
| Plain Ends (PE) | Suitable for welding and general pipeline applications. |
| Beveled Ends (BE) | Commonly used for butt welding; the bevel angle and root face can be manufactured according to the applicable standard. |
| Flanged Ends | Used where detachable connections are required, particularly in water treatment, industrial piping, and equipment connections. |
| Custom End Preparation |
Special end configurations can be provided according to project drawings, connection methods, and customer requirements. |
Related: SAWL Coated Steel Pipe
