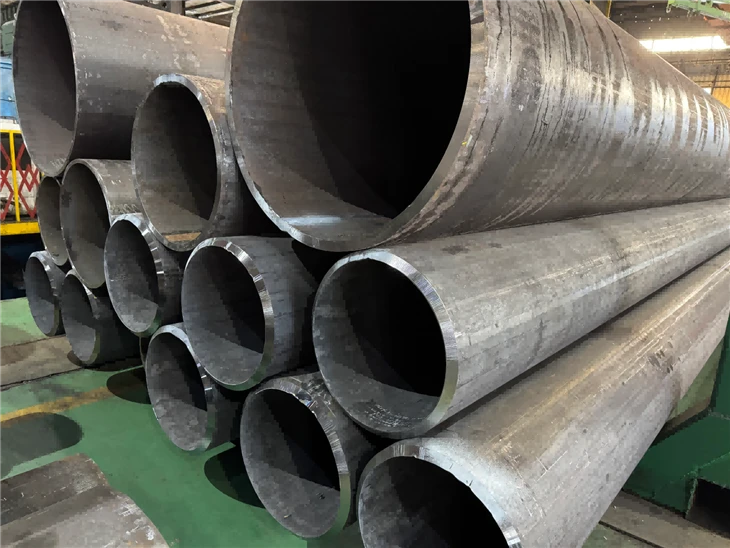

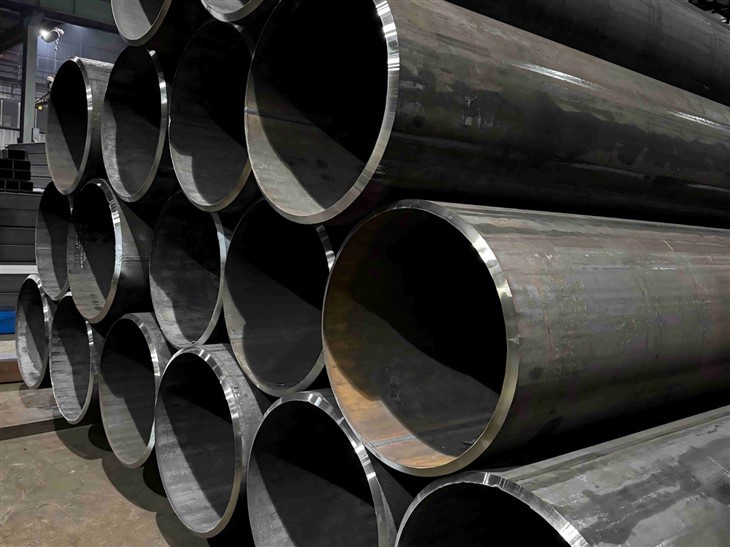

Large Diameter Steel Pipe

Tianjin Brisk Steel is one of the manufacturers of High Strength LSAW Pipe in China. Our products are mainly exported to the Middle East, Southeast Asia, Europe, New Zealand, and other regions.If you would like to learn more about our products, feel free to contact us and send your purchase list.

 PRODUCT

Tianjin Brisk Steel focus on produce and supply hollow section and steel pipe

Large‑diameter steel pipe generally refers to outer diameter ≥ 406 mm (16 inch) carbon‑steel pipe, we supply 3 core categories:

• LSAW Pipe (Longitudinal Submerged‑Arc Welded Pipe)

  Process: JCOE / UOE forming, double‑sided submerged‑arc welding

  Best‑fit: High‑pressure oil & gas trunk pipeline, offshore project, heavy‑load piling

  OD: 406 mm‑1626 mm



• SSAW / HSAW Pipe (Spiral Submerged‑Arc Welded Pipe)

  Process: Steel coil spiral forming + SAW welding

  Best‑fit: Water‑supply, drainage, sewage, low‑pressure fluid transmission, civil piling

  OD: 219 mm‑3500 mm (extra‑large diameter available)



• Large‑diameter Seamless Steel Pipe (SMLS)

  Process: Hot rolling / hot extrusion, no weld seam

  Best‑fit: High‑pressure, high‑temperature industrial service

  Max common OD: 660 mm‑914 mm

• Brisk Steel Recommendation: High‑pressure energy pipeline → choose LSAW; Large‑volume water infrastructure / piling → choose SSAW, more cost‑effective.

• Outer Diameter (OD): 219 mm ~ 3500 mm
• Wall Thickness (WT): 5 mm‑75 mm
• Length: 6m, 9m, 12m standard random length; fixed cut‑length 3‑48 m available
• Pipe end: Plain end / Beveled end (30° bevel for field welding); bevelling protection ring optional
• Dimensional tolerance: Strictly follow API‑5L, EN, ASTM tolerance requirements for OD, wall thickness, straightness, ovality

Carbon Steel Grades

• API 5L: Gr.B, X42, X46, X52, X56, X60, X65, X70 (PSL‑1 / PSL‑2)
• ASTM: A53 Gr.B, A106 Gr.B, A252 Gr.1/2/3
• European: S235JR, S355JR, S355J2H

Application Recommend

• Oil & gas: API 5L
• Structural / piling: ASTM A252, EN 10219‑1
• Fluid service: ASTM A53, A106, EN 10217‑1
• Water pipeline: AWWA C200

Production of Large Diameter LSAW Steel Pipe

• Raw material: High-standard carbon steel plate with stable chemical composition, low impurity, guaranteed strength and toughness
• Forming process: Advanced JCOE cold forming technology, no internal damage to steel structure
• Welding process: Double-sided multi-pass submerged arc welding, full weld penetration, weld strength consistent with base metal
• Cold expanding: Eliminate residual stress, ensure precise pipe roundness and straightness
• Full NDT inspection: 100% Ultrasonic Testing (UT), 100% Radiographic Testing (RT), Hydrostatic Test, Bend test, Charpy impact test

Raw material

Forming process

Welding process

Cold expanding

Full NDT inspection

• Bare black pipe (mill finish, anti‑rust oil)
• Black varnish / epoxy paint
• 3‑LPE (3‑layer polyethylene) - most popular buried‑pipe anti‑corrosion,‑45℃~80℃ working temp
• 3‑LPP, FBE (Fusion Bonded Epoxy)
• Internal lining: Cement mortar lining for potable‑water pipeline



Surface Treatment

LSAW Pipe (Longitudinal Submerged Arc Welded Pipe)

• Production Feature: Manufactured by JCOE / UOE cold forming process, single steel plate forming, double-sided submerged arc welding, and full cold expanding. It features high roundness, low residual stress, stable weld performance and strict dimensional tolerance.
• OD Range: 406mm – 1626mm
• Main Application Fields:

1. High-pressure long-distance onshore oil and gas trunk pipelines (API 5L PSL2)
2. Offshore / subsea pipeline projects
3. River, railway and highway crossing pipeline sections
4. Heavy-duty foundation piling for bridges, ports, offshore platforms and high-rise buildings
5. Low-temperature region gas & oil transmission projects requiring Charpy impact test (-20℃ / -40℃)
6. Thick-wall high-pressure process pipelines for refinery and energy stations
7. Not suitable for: Ultra-large diameter and low-pressure general water pipeline projects (high cost performance ratio).

SSAW Pipe (Spiral Submerged Arc Welded Pipe)

• Production Feature: Formed by steel coil continuous spiral rolling and double-sided submerged arc welding. It supports ultra-large diameter production with low cost and high production efficiency.
• OD Range: 219mm – 3500mm
• Main Application Fields:

1. Municipal large-diameter water supply, drainage and sewage trunk pipelines
2. Long-distance water diversion, irrigation and flood control projects
3. General construction foundation piling, bridge piling, steel casing and cofferdam projects (ASTM A252)
4. Low-pressure urban gas distribution network and secondary branch pipelines
5. Dredging pipelines, tailing slurry and mine conveying pipelines
6. Large-scale civil infrastructure projects with budget control
7. Not suitable for: High-pressure main gas pipelines, subsea pipelines and critical low-temperature energy projects.

SMLS Seamless Steel Pipe

• Production Feature: Hot rolled / hot extruded from solid steel billet, no weld seam. It owns the highest pressure resistance and structural stability.
• OD Range: Max regular production OD ≤ 914mm
• Main Application Fields:

1. High-temperature and high-pressure process pipelines for chemical plants, refineries and power stations
2. Boiler tubes, superheated steam pipelines and high-pressure hydraulic pipelines
3. Oilfield wellhead pipelines and high-pressure gathering lines
4. Sour service and corrosive medium industrial pipelines
5. High-pressure fertilizer and petrochemical equipment piping systems
6. Not suitable for: Large-diameter long-distance fluid transmission projects due to extremely high cost and limited production capacity.
