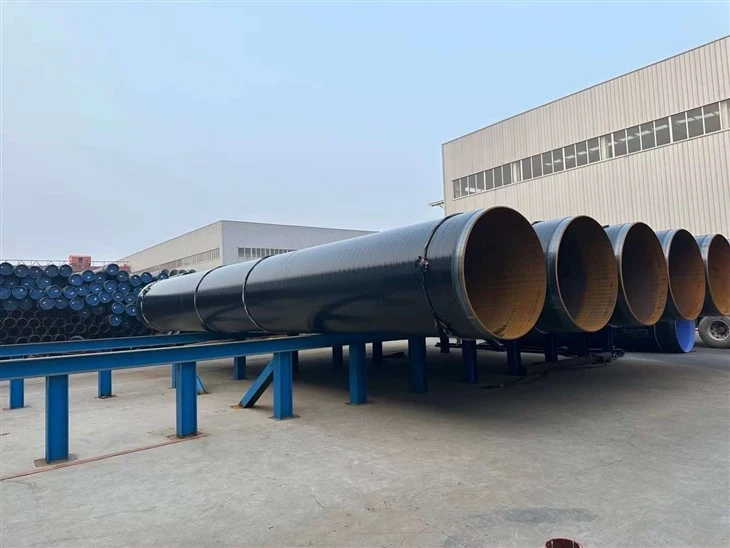

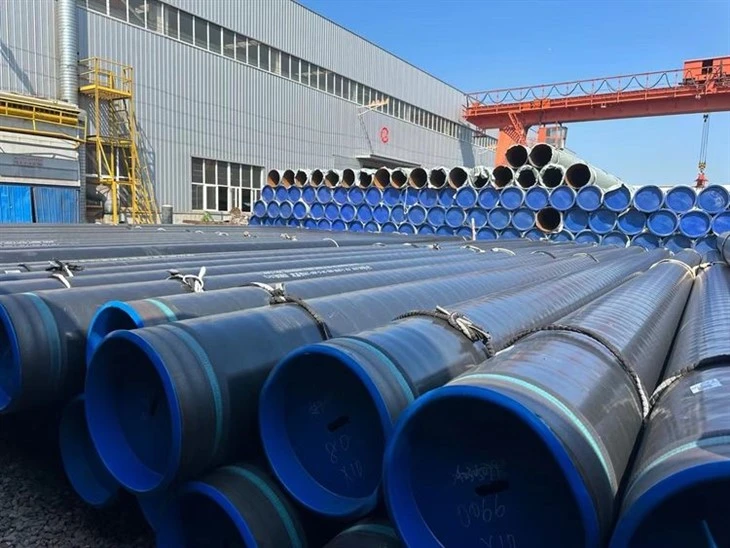

Tianjin Brisk Steel is one of the manufacturers of 3PE Coated LSAW Steel Pipe in China. Our products are mainly exported to the Middle East, Southeast Asia, Europe, New Zealand, and other regions.If you would like to learn more about our products, feel free to contact us and send your purchase list.
When the Ground You're Burying It In Fights Back
Rocky backfill doesn't care how good your corrosion coating is - it just needs one sharp edge to gouge through a thin epoxy layer during pipe-laying, and the clock on corrosion starts the day the pipe goes in the ground, not years later. That's the gap 3PE (Three-Layer Polyethylene) coated LSAW steel pipe was engineered to close: it adds real mechanical armor on top of chemical protection, so the coating survives the installation, not just the service life.
We start with LSAW pipe - the straightest, most dimensionally stable option for large-diameter, thick-wall applications - and build a three-layer shield on top of it, each layer doing a job the others can't.
Three Layers, Three Jobs - Not Three Coats of the Same Thing
A lot of suppliers market "3-layer" coating without explaining why three layers beat one. Here's what each layer actually does:
- Fusion Bonded Epoxy (FBE), 60–100μm. Chemically bonded to the steel surface for corrosion resistance and cathodic protection compatibility. This is the layer stopping oxidation at the metal itself.
- Copolymer Adhesive, 170–250μm. The layer nobody talks about but everything depends on - it's what keeps the tough outer PE jacket from separating from the epoxy underneath during thermal cycling or ground movement.
- Extruded Polyethylene, 1.4–3.0mm. The armor plate. Absorbs impact, resists abrasion from rocky soil, and shrugs off the scrapes of trenching, HDD (horizontal directional drilling) pullback, and backfill compaction.
Strip out any one layer and the system underperforms - thin PE without the adhesive delaminates, epoxy without the PE jacket gouges on the first rock.
Built on LSAW Pipe Body
| Specification | Detail |
|---|---|
| Standard | API 5L, ISO 3183, DIN 30670, GB/T 9711 |
| Grade | X42–X80, B, PSL1/PSL2 |
| Outer Diameter | 406mm – 1420mm (16"–56") |
| Wall Thickness | 6mm – 60mm |
| Total Coating Thickness | 1.5mm – 3.0mm (per DIN 30670 / EN 10288) |
| Coating Coverage | Full body, with 100–150mm bare cutback at each end for girth welding |
| Length | 6m, 12m, or per project drawing |
| Ends | Beveled, plain, or per client spec |
Where 3PE Earns Its Cost Premium Over Single-Layer FBE
3PE isn't the default choice - it's the right choice for specific ground conditions. It gets specified when the job involves:
- Rocky or gravel-heavy backfill, where a thin coating alone won't survive installation
- Horizontal directional drilling (HDD) river or road crossings, where the pipe is dragged through a bore hole under mechanical stress
- Dense urban trenching near existing utilities, where accidental contact during excavation is a real risk
- Long-distance transmission lines where a single coating failure means excavating kilometers of buried pipe to repair
If your route is straight trench through clean, sandy soil, single-layer FBE may be all you need - we'll tell you that upfront rather than upselling a coating your project doesn't require.
FAQ
Q: Is 3PE coating better than FBE alone?
A:Not universally - it's better for mechanically demanding installations. 3PE adds a polyethylene armor layer over an FBE base, giving impact and abrasion resistance that plain FBE doesn't have. For straightforward trenching in soft soil, single-layer FBE is often sufficient and more cost-effective.
Q: Can 3PE coated pipe be used with HDD (horizontal directional drilling)?
A: Yes - 3PE is one of the most common coating choices for HDD installations specifically because the outer PE layer withstands the abrasive pulling forces of bore-hole installation better than thinner coating systems.
Q: How is the field joint coated after girth welding?
A: The bare cutback area at each pipe end is typically field-coated using heat-shrink sleeves that match the parent coating system, restoring continuous protection across the weld.
Q: What's the difference between 3PE and 3PP coating?
A: 3PE uses a polyethylene outer layer and suits standard buried pipeline temperatures. 3PP (Three-Layer Polypropylene) replaces the outer layer with polypropylene, which handles higher operating temperatures - commonly specified for offshore or high-temperature process lines.
