For buried oil, gas, and water transmission pipelines, the coating system protecting the steel is arguably as important as the pipe itself - a strong pipe with a failed coating still corrodes and fails. 3PE (three-layer polyethylene) coating has become the global default for major buried pipeline projects, and understanding exactly why it performs the way it does is essential for anyone specifying, purchasing, or inspecting coated pipe.
This guide covers how 3PE coating is built layer by layer, the standards that govern it, how it's tested, where it fits against alternative coatings, and a practical checklist for buyers evaluating 3PE-coated pipe.

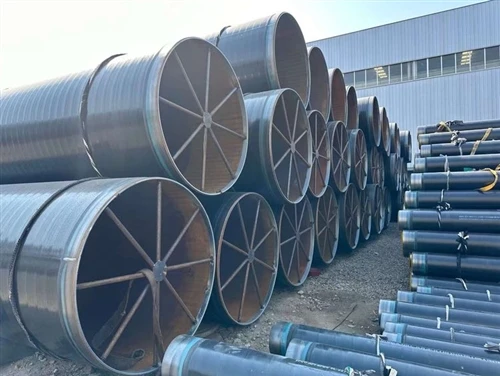

3PE Anti-Corrosion Pipe
3PE Anti-Corrosion Steel Pipe
3PE Steel Pipe
What Is 3PE Coating?
3PE stands for three-layer polyethylene, referring to an external anti-corrosion coating system applied to steel pipe in three distinct, chemically and mechanically bonded layers. Unlike a single-layer paint or wrap, 3PE combines the corrosion resistance of epoxy with the mechanical durability of polyethylene, engineered specifically to protect buried and submerged steel pipelines over multi-decade service lives.
It's important to understand that 3PE is a coating system, not a pipe material or steel grade - it can be applied to ERW, seamless, or SAW pipe of virtually any grade, from X42 through X80 and beyond, as long as the base steel and coating process are compatible.
The Three Layers, Explained
Layer 1: Fusion Bonded Epoxy (FBE) Primer
The innermost layer, applied directly to a cleaned and preheated steel surface (typically 200–250°C), is a fusion bonded epoxy powder that melts and cures onto the steel to form a hard, chemically bonded primer. This layer is responsible for the coating's fundamental adhesion to steel and provides excellent resistance to chemical attack and cathodic disbondment - the gradual lifting of coating from the steel surface under long-term cathodic protection current.
Layer 2: Copolymer Adhesive
Epoxy and polyethylene do not bond well to each other directly, so a copolymer adhesive layer is extruded between them. This layer acts as a chemical bridge, fusing the hard epoxy primer to the flexible polyethylene topcoat while the coating is still hot, creating a continuous, void-free bond through the full coating thickness.
Layer 3: Extruded Polyethylene Topcoat
The outer layer is extruded high-density or medium-density polyethylene, applied while the pipe is still hot so it fuses with the adhesive layer beneath. This is the layer that does the mechanical work - resisting impact during transport and installation, abrasion from soil and rock, and long-term moisture penetration. Depending on pipe diameter and the applicable standard, total polyethylene thickness typically ranges from 1.4 to 3.2 mm, forming the bulk of the total coating thickness.
The combined result is a coating that is significantly tougher and more chemically resistant than either material would be alone - the epoxy handles adhesion and chemical resistance, the polyethylene handles mechanical durability and the primary moisture barrier.
How 3PE Protects Steel Pipe
3PE works as a barrier coating - its entire protective function depends on physically isolating the steel surface from moisture, oxygen, and soil chemistry. This is a key distinction from galvanizing, which provides sacrificial protection even after localized damage. 3PE has no self-healing mechanism: if the coating is punctured or damaged during installation, that exposed point has zero corrosion protection on its own.
For this reason, 3PE-coated buried pipelines are, without exception, designed alongside a cathodic protection (CP) system - typically impressed current or sacrificial anode systems - that provides backup protection at any coating holidays (small defects) or damage points. Coating and cathodic protection are not alternatives to each other; on a properly engineered buried pipeline, they work together as a single corrosion control system.
3PE Coating Production Process
Standards Governing 3PE Coating
Several international standards define 3PE coating requirements, and buyers should confirm which one their project specifies, since minimum layer thicknesses and testing requirements differ:
| Standard | Scope |
|---|---|
| ISO 21809-1 | International standard for polyolefin coatings (3-layer PE and PP) on pipelines |
| DIN 30670 | German standard for PE coating of steel pipe, widely referenced globally |
| EN 10288 | European standard for external polyethylene coating |
| GB/T 23257 | Chinese national standard for 3PE anti-corrosion coating on buried steel pipe |
| CAN/CSA Z245.21 | Canadian standard for external polyethylene coating |
These standards define minimum total coating thickness (commonly 1.8–3.7 mm depending on pipe diameter), individual layer thickness ranges, and required laboratory tests. A coating described simply as "3PE" without a referenced standard leaves too much ambiguity for a buyer to verify quality against. It's worth noting that thickness requirements generally scale with pipe diameter - larger-diameter pipe typically requires thicker coating classes to achieve equivalent mechanical protection, so a single thickness number cannot be applied uniformly across an entire product range.
Key Quality Tests for 3PE Coating
When evaluating a supplier or reviewing test documentation, these are the tests that actually indicate coating quality - not just visual appearance:
- Coating thickness. Measured with a calibrated gauge at multiple points around the pipe circumference and along its length, checked against the minimum required by the governing standard.
- Holiday (pinhole) detection. A high-voltage spark test run over the entire coated pipe surface to detect any point where the coating fails to fully insulate the steel - a single holiday can become a corrosion initiation point.
- Peel strength / adhesion. Measures how strongly the coating bonds to the steel surface; low peel strength indicates poor surface preparation or incorrect application temperature during manufacturing.
- Impact resistance. Confirms the coating can withstand mechanical impact during transport, handling, and backfilling without cracking or disbonding.
- Cathodic disbondment resistance. A long-duration test (commonly 28 days) that simulates years of cathodic protection exposure, measuring how far the coating lifts away from the steel around a controlled holiday - critical for predicting long-term performance under real CP conditions.
- Indentation / hardness. Verifies the coating can resist soil stress and rock impingement after burial without excessive deformation.
Buyers should request these test results as part of the coating quality documentation, not just accept a general compliance statement.
Where 3PE Coating Is Used
- Long-distance oil and gas transmission pipelines, where design life often exceeds 30 years and failure consequences are severe
- Water transmission mains, particularly larger-diameter municipal and industrial systems
- Offshore-to-onshore pipeline sections, where mechanical durability during installation is critical
- River and road crossings, where impact resistance during horizontal directional drilling (HDD) installation matters
- Any buried pipeline project where 30+ year service life is a design requirement
3PE vs. 2PE: When Does the Extra Cost Make Sense?
The most common alternative to 3PE is 2PE (two-layer polyethylene), which omits the epoxy primer layer, bonding the adhesive directly to steel. This reduces cost but generally results in lower adhesion strength and reduced resistance to cathodic disbondment over long service periods.
For high-consequence, long-design-life pipelines - major transmission mainlines, pipelines in environmentally sensitive areas, or projects where excavation and repair costs would be extreme - 3PE's higher upfront cost is typically justified by meaningfully lower long-term failure risk. For shorter-design-life, lower-pressure, or lower-risk buried infrastructure, 2PE can be an appropriate and more economical choice. The decision should be based on project risk and design life, not simply on minimizing coating cost.
Buyer's Checklist for 3PE-Coated Pipe
1. Confirm the governing coating standard (ISO 21809-1, DIN 30670, GB/T 23257, etc.) and the specific coating thickness class required for your pipe diameter and application.
2. Request holiday detection test records, not just a pass/fail statement - ask whether testing covered 100% of the coated surface.
3. Ask for cathodic disbondment test data, especially for high-consequence or long-design-life pipelines where this property has the greatest long-term impact.
4. Verify surface preparation standards. Steel surface cleanliness (typically per SA 2.5 blast cleaning standard) directly affects epoxy adhesion - ask what surface preparation standard the mill applies before coating.
5. Check coating thickness at pipe ends and field joints. Cutback areas (uncoated sections left for field welding) and field joint coating systems are common weak points; confirm the supplier's cutback dimensions and recommended field joint coating method.
6. Match coating class to soil and installation conditions. Rocky soil, HDD installation, or aggressive backfill conditions may justify a heavier coating thickness class than standard trenching in sandy soil.
7. Request a full coating inspection report alongside the steel mill test certificate - coating quality documentation should be a separate, complete package, not an afterthought attached to the steel certification.
Conclusion
3PE coating earns its position as the global standard for buried pipeline corrosion protection through a genuinely engineered combination of chemical adhesion and mechanical toughness - not through marketing alone. But the coating's real-world performance depends heavily on manufacturing quality: surface preparation, application temperature, layer thickness control, and testing rigor all determine whether a 3PE-coated pipe delivers the 30-plus years of service life the system is designed for, or fails early due to a corner cut somewhere in production. Buyers who understand the standards, request the right test data, and match coating class to actual site conditions are far better positioned to get the long-term performance they're paying for.
Need help specifying 3PE coating class, standard, or field joint requirements for your project? Share your pipe diameter, application, and installation method, and our technical team can help finalize the right specification.
