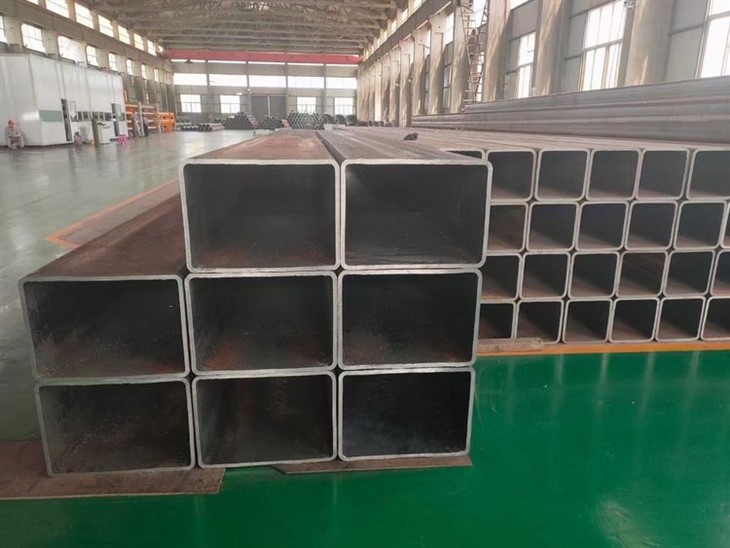

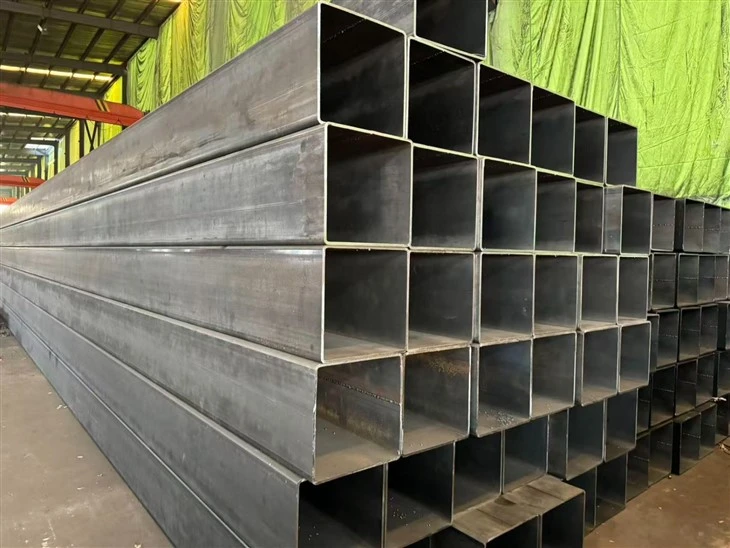

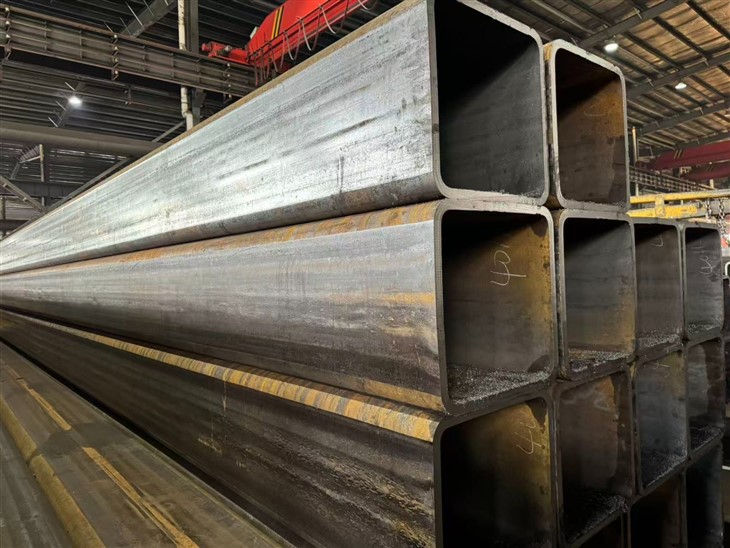

Tianjin Brisk Steel is one of the EN10219 black welded square steel pipe in China. Our products are mainly exported to the Middle East, Southeast Asia, Europe, New Zealand, and other regions.If you would like to learn more about our products, feel free to contact us and send your purchase list.
What "Black" Means Under EN 10219
EN 10219 governs cold-formed welded structural hollow sections - square, rectangular, and circular - produced by roll-forming steel strip and welding it longitudinally, typically by high-frequency induction (ERW/HFW). The standard itself does not dictate surface finish; it covers dimensional tolerances, mechanical properties, and grade requirements (S235, S275, S355, and their JR/J0/J2/JRH/J0H/J2H variants).
Finish is a separate specification layer applied on top of EN 10219:
- Black (uncoated / mill finish) - steel as-welded, with a thin oxide/mill scale layer and light rust-preventive oil applied for short-term protection during transit and storage. No corrosion resistance treatment.
- Hot-dip galvanized - zinc coating per EN ISO 1461, added after tube production.
- Pre-galvanized (in-line) - thinner zinc layer applied to the strip before forming.
Black tube is the base product. Every galvanized or coated EN 10219 section starts as black tube before finishing is applied, which is also why black tube typically carries a lower unit cost.
Where Black EN 10219 Square Pipe Is the Right Choice
Black finish makes sense whenever the tube will be protected, enclosed, or coated after fabrication - not when it needs to stand up to weather on its own.
Interior structural framing. Columns, beams, and bracing inside a building envelope, where the steel is never exposed to rain or humidity swings, don't need zinc protection. Architectural and structural engineers commonly specify black EN 10219 for these members and leave corrosion control to the building's climate control and any intumescent fireproofing coating applied later.
Steel destined for painting or powder coating. If the fabricator plans to shot-blast and apply a paint or powder coating system regardless, ordering pre-galvanized tube adds cost without adding value - the zinc layer gets blasted or coated over anyway, and paint adhesion to bare steel (after proper surface prep) is often more straightforward than to a zinc surface, which requires specific etch primers to avoid peeling.
Machinery frames, equipment bases, and general fabrication. Workshop-built equipment, conveyor frames, and machine bases that stay indoors in a controlled environment are standard black-tube applications.
Weld-heavy fabrication. Welding through a galvanized coating releases zinc fumes and requires respiratory precautions and post-weld coating repair. Fabricators doing extensive on-site welding on a structure frequently prefer black tube and apply corrosion protection after all welding is complete.
Cost-sensitive indoor or temporary projects. Scaffolding sold for short rental cycles, temporary shoring, and indoor exhibition structures are common places where the added cost of galvanizing isn't justified by the service life required.
Where Black Tube Is the Wrong Choice
Any application with direct or intermittent exposure to moisture - outdoor fencing, exposed structural steel, marine environments, roadside barriers, agricultural structures - needs a corrosion-resistant finish. Black tube left outdoors without a protective coating will develop surface rust within weeks depending on climate, and the mill oil applied for transit protection is not a substitute for paint or galvanizing.
FAQ
Q: Is black EN 10219 square pipe weaker than galvanized tube of the same size?
A: No. Mechanical strength comes from the steel grade and wall thickness defined by EN 10219, not from the surface finish. A black and a hot-dip galvanized tube of identical grade, size, and wall thickness have the same load-bearing capacity; galvanizing only adds corrosion protection.
Q: Can black EN 10219 tube be galvanized later after fabrication?
A: Yes, this is common practice - fabricate the frame or structure first, then send the finished assembly for hot-dip galvanizing. This requires the steel to be an "H" grade suitable for galvanizing and the fabrication design to include vent and drain holes so molten zinc can flow through hollow sections properly during dipping.
Q: How long can black square pipe sit in storage before it rusts?
A: With standard mill oil and dry, covered storage, light surface rust typically doesn't appear for at least several weeks to a few months. Humid climates, outdoor storage, or condensation from temperature swings shorten this significantly. Surface rust that forms before blasting and coating is usually removable and does not affect structural integrity, but it adds cost to surface prep.
Q: What's the price difference between black and hot-dip galvanized EN 10219 square pipe?
A: Galvanizing typically adds a per-ton premium on top of the base black tube price, driven by zinc market pricing and the galvanizing process itself. The exact premium varies by supplier and current zinc prices, so request a like-for-like quote comparing both finishes for your specific size and quantity.
