Tianjin Brisk Steel is one of the ASTM A501 Hot Formed Carbon Steel Seamless Square Tubing in China. Our products are mainly exported to the Middle East, Southeast Asia, Europe, New Zealand, and other regions.If you would like to learn more about our products, feel free to contact us and send your purchase list.
How Seamless Square Tubing Is Actually Made

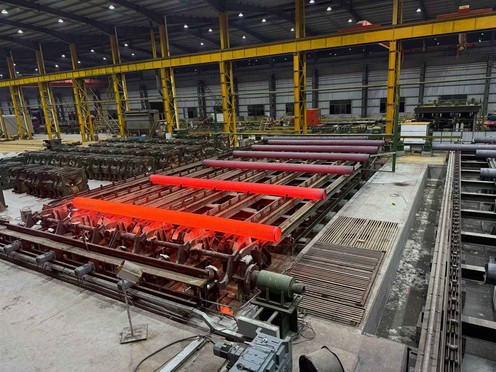

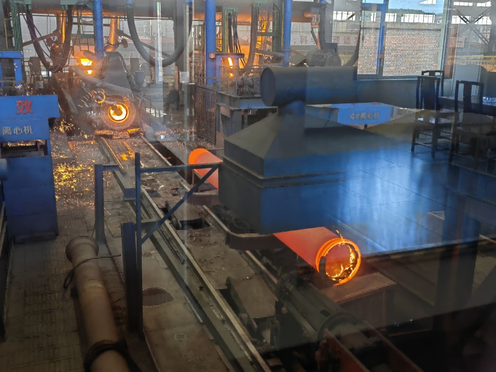

Seamless square tubing doesn't start square. Production begins with seamless round pipe or tube, made by piercing a solid billet and rolling it into a hollow round shape with no weld seam. That round seamless stock is then hot-formed - heated and progressively shaped through forming rolls or dies - into a square or rectangular cross-section while the steel is above its recrystallization temperature.
Because the starting material already has no weld seam, and the hot-forming step doesn't introduce one, the finished square section has zero weld line anywhere around its perimeter. This is the defining difference from both A500 cold-formed square tube (which starts as flat strip, welded into a round or square shape) and A501 welded square tube (hot-formed but still built from welded stock).
The tradeoff is availability and cost. Seamless round pipe in the sizes needed to form larger squares is a specialized product itself, and the additional hot-forming step to reshape it adds a second production stage most mills don't run routinely. Seamless square tube is consequently a made-to-order product with longer lead times and a meaningfully higher price than welded square tube of the same nominal size.
Where Seamless Square Tube Justifies Its Cost
Eliminating weld-seam variables from fatigue and pressure analysis. Any application where an engineer wants to remove the weld seam entirely as a variable in fatigue life calculations, rather than qualify and test it, is a candidate for seamless square tube. This shows up most often in mechanical, hydraulic, and heavy equipment applications built with square section rather than round.
Structural members with no accessible weld seam for inspection. Once a welded tube is in service inside an assembly, the seam may not be practically inspectable again. Specifying seamless removes that inspection burden at the source for critical members.
High-pressure or high-stress mechanical framing. Square seamless tube shows up in machine frames, press structures, and mobile equipment chassis where the section carries cyclic loading and a uniform, seam-free wall is worth the cost premium.
Projects where the specification explicitly calls for seamless. Some project specs - particularly in heavy industrial, mining, or specialized mechanical equipment - name seamless construction directly. In these cases the decision isn't cost-driven at the buyer's end; it's a submittal requirement to satisfy.
Where Welded A501 Square Tube Is the Better Choice
For standard building structural framing - columns, beams, bracing under typical building code design - welded A501 or A500 square tube performs entirely adequately, is far more readily available, and costs substantially less. Seamless square tube is a specialized product for cases where the weld seam itself is the concern, not a general upgrade for structural framing.
Buying Guide: What to Confirm Before Ordering Seamless Square Tube
- Verify the size is actually available seamless. Not every A500-standard square size has a seamless equivalent in routine production. Larger sizes and heavier walls may require sourcing from a limited pool of mills, or may not be practical to produce seamless at all - confirm availability and lead time before finalizing a project design around a specific size.
- Confirm Grade B (or the specified grade) mechanical properties apply post-forming. Ask the mill to confirm that tensile and yield properties are verified after the hot-forming step, not just on the starting seamless round stock, since forming can affect final properties.
- Request corner radius and dimensional tolerance data. Hot-formed seamless square sections may have different corner radius characteristics than cold-formed A500 square tube. If the design depends on a specific inside or outside corner radius for connection detailing, get actual dimensional data from the mill rather than assuming A500 tables apply directly.
Frequently Asked Questions (FAQ)
Q: Is seamless square tubing simply stronger than welded square tubing?
A: Not automatically. Strength is governed primarily by grade, wall thickness, and section dimensions, which can be matched between welded and seamless products of the same size. The advantage of seamless is the absence of a weld seam as a variable in fatigue and inspection considerations, not an inherent increase in static strength.
Q: Why does seamless square tube cost more than welded square tube of the same size?
A: It requires two production stages instead of one - first making seamless round pipe, then hot-forming it into a square section - and fewer mills run this combined process. The limited production base and added forming step both add cost compared to single-stage welded tube production.
Q: Can seamless square tube be ordered in any size that welded A501 square tube comes in?
A: No. Seamless square availability is narrower, particularly at larger outside dimensions and heavier wall thicknesses, since it depends on the sizes of seamless round stock that can be practically reshaped. Always confirm availability for your exact size and wall combination before finalizing a design.
Q: Does seamless construction affect weldability when fabricating with this tube?
A: Seamless square tube welds the same way any A501 carbon steel tube does for field or shop connections - the seamless designation refers to the tube's own longitudinal wall, not to how it's joined to other members during fabrication. Standard structural welding procedures apply.
