Tianjin Brisk Steel is one of the manufacturers of MS Scaffolding Pipes in China. Our products are mainly exported to the Middle East, Southeast Asia, Europe, New Zealand, and other regions.If you would like to learn more about our products, feel free to contact us and send your purchase list.
PRODUCT
Tianjin Brisk Steel focus on produce and supply hollow section and steel pipe
Technical Overview: The Engineering Behind MS Scaffolding Pipes
Understanding the technical foundations of scaffolding tubes allows procurement managers and site safety officers to source materials with complete confidence:
- The Low-Carbon Matrix: MS stands for Mild Steel, a carbon steel containing an optimized low-carbon range (typically under 0.25%). This chemical profile is crucial because it ensures the pipe retains high ductility and toughness. Instead of snapping or shattering under sudden overload stress, mild steel yields gradually, providing a critical visual warning on site.

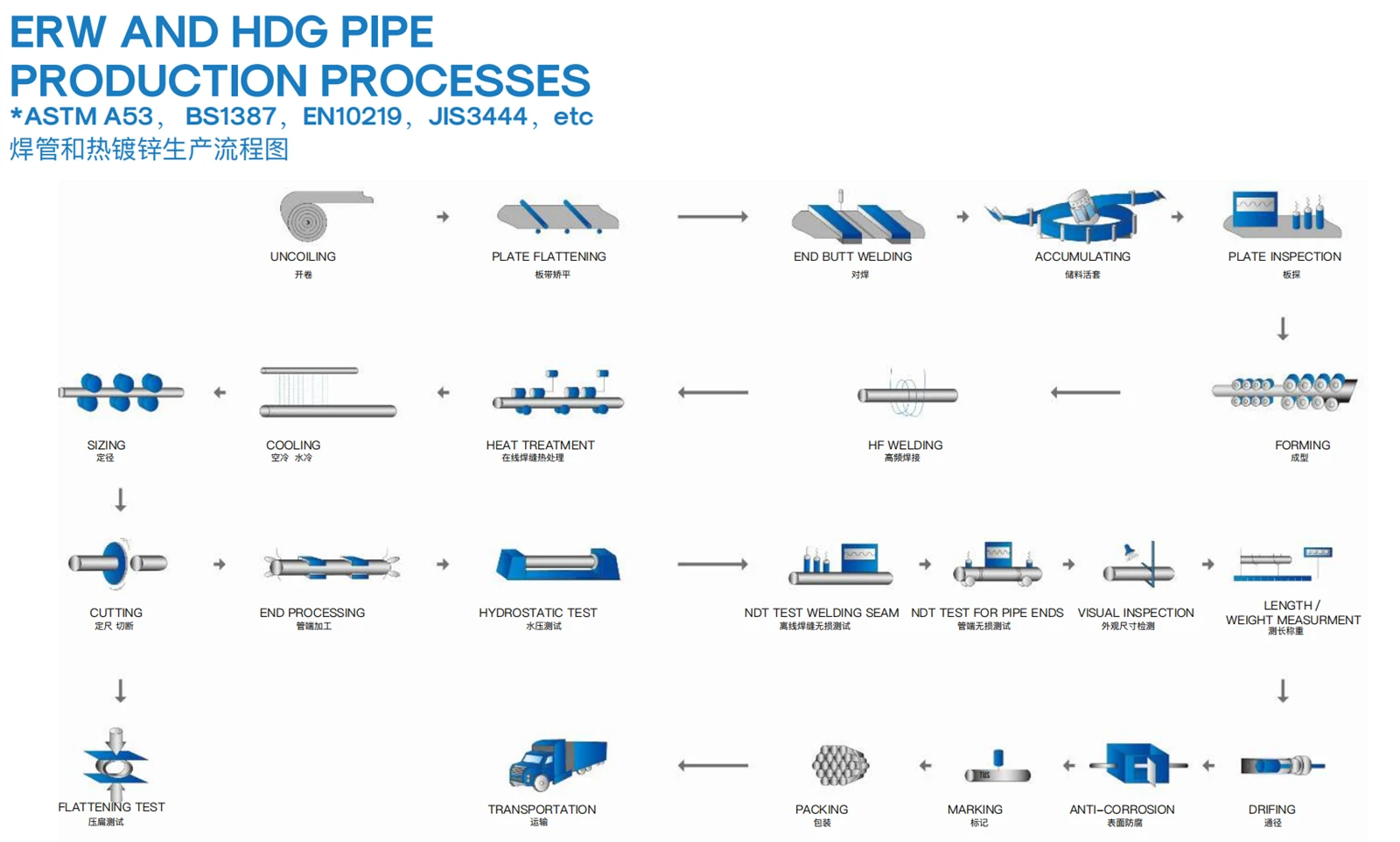

- Manufacturing Precision: Our scaffolding tubes are manufactured using High-Frequency Induction ERW (Electric Resistance Welding) technology. The longitudinal seam is forged through thermal resistance without added filler metals, resulting in a weld line that perfectly matches the strength and consistency of the parent tube body.
Technical Specifications & Size Portfolio
We supply and export MS scaffolding pipes configured to standard international building dimensions:
| Parameter | Specifications & Compliance |
| Standard Compliance | EN 39, BS 1139 (Part 1), EN 10219, JIS 3444 |
| Common Steel Grades | S235GT, STK400, STK500, S235JRH |
| Outer Diameter (OD) | Standard 48.3mm (1.15/16") |
| Wall Thickness (WT) | 3.2mm (Type 3) | 4.0mm (Type 4) |
| Length Profiles | 6.0m (Standard standard length), or pre-cut custom sizes (e.g., 1.0m to 4.0m) |
| Surface Finishes | Bare/Black Steel, Anti-Rust Varnished, Hot-Dip Galvanized (HDG) |
| End Execution | Plain Square Cut (Deburred for seamless connector insertion) |
Thickness of Scaffolding Tubes
| Thickness | Standard |
|---|---|
| 4.0mm | BS1139 and EN 39 |
| 3.2mm | EN10219, EN39 |
| 2.4mm | GI Pipes JIS 3444 |
Frequently Asked Questions (FAQ)
Q: What is the difference between Type 3 and Type 4 scaffolding pipes?
A:The primary difference is the wall thickness. Under European EN 39 standards, Type 3 scaffolding pipes feature a wall thickness of 3.2mm, whereas Type 4 pipes feature a wall thickness of 4.0mm. Type 4 tubes provide a higher structural load-bearing capacity and greater resistance to impact damage from field handling, making them the standard choice for heavy industrial scaffolding and shoring systems.
Q: Why is Hot-Dip Galvanizing (HDG) preferred over Painted or Black scaffolding pipes?
A: While black or painted pipes are more economical initially, they rust quickly when the paint chips during transportation and disassembly. Hot-Dip Galvanized (HDG) pipes are submerged in molten zinc, creating a highly durable iron-zinc alloy layer inside and out. HDG scaffolding pipes shrug off deep scratches, prevent rust scaling, and outlast painted options by years, saving you significant equipment replacement costs over time.
Q: Are your scaffolding pipe ends deburred and safe for on-site crew assembly?
A: Yes, absolutely. We subject 100% of our scaffolding tubes to a factory deburring process. This eliminates sharp steel burrs left behind by high-speed saws, ensuring smooth, injury-free manual handling for your erection crews and a flush fit for internal joint pins.
Q: Can your mill handle independent third-party inspections (TPI) prior to shipping?
A: Yes, we fully welcome and encourage independent inspections. Globally recognized auditing firms such as SGS, Bureau Veritas (BV), Intertek, or TÜV frequently visit our facility to audit raw material mill sheets, verify outer dimensions and mass tolerances, witness flattening/crush testing, and check final seaworthy packing before container loading.
BRISK STEEL
Keep your projects moving forward with fully certified materials and robust logistics. Contact our international sales engineering division today to check our live inventory, request specific custom wall thicknesses, or receive a competitive FOB or CIF quotation tailored directly to your preferred port.
