Tianjin Brisk Steel is one of the manufacturers of Large Diameter Structural Seamless Pipe in China. Our products are mainly exported to the Middle East, Southeast Asia, Europe, New Zealand, and other regions.If you would like to learn more about our products, feel free to contact us and send your purchase list.
What Defines a Large Diameter Structural Seamless Pipe?

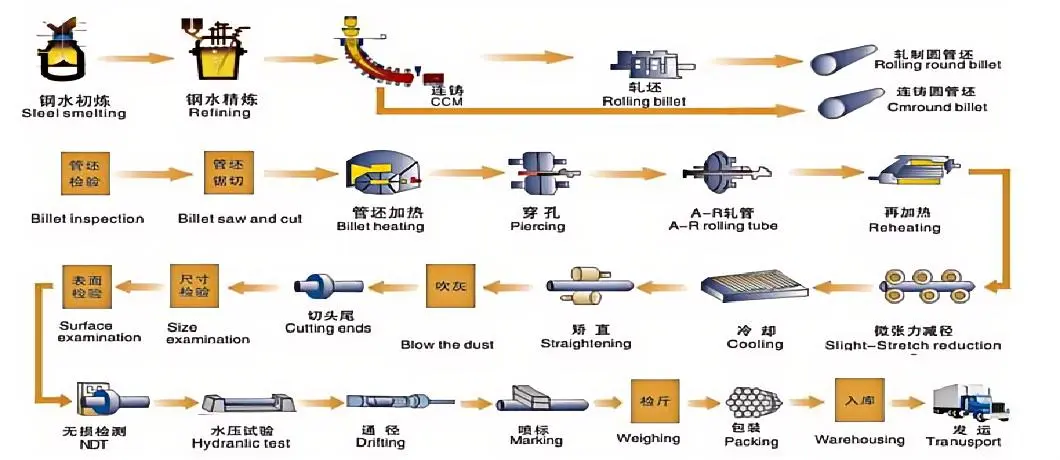

- A seamless steel pipe is manufactured by piercing a solid steel billet at extreme temperatures to form a hollow shell, which is then rolled and elongated to its final dimensions.
- While standard seamless pipes are commonly produced in smaller sizes for fluid transport, "large diameter" structural seamless pipes generally refer to profiles with an Outside Diameter (OD) ranging from 16 inches (406.4 mm) up to 36 inches (914.4 mm) and beyond, with wall thicknesses that can exceed 2 inches (50.8 mm). These heavy-wall, large-scale dimensions are specifically engineered to optimize radius of gyration and cross-sectional area for high-load structural configurations.
Key Advantages for Heavy-Load Structures
Global engineering firms specify large-diameter seamless steel pipes over welded alternatives due to several critical performance factors:
1. Absolute Structural Uniformity
Because there is no weld seam, the pipe exhibits completely isotropic mechanical properties. This means its tensile strength, yield strength, and impact toughness are perfectly uniform across the entire cross-section, allowing engineers to calculate structural buckling limits with absolute predictability.
2. Exceptional Torsion and Bending Resistance
The combination of a circular hollow profile and a thick seamless wall provides unmatched resistance against torsional twisting and multi-directional bending moments. This makes it an ideal choice for structures exposed to unpredictable environmental forces like high winds, ocean currents, and seismic activity.
3. Stress-Free Fabrication and Machining
Large-diameter seamless structural pipes are finished at high temperatures, leaving them free from the internal residual stresses common in cold-formed welded profiles. Consequently, they can undergo heavy field welding, flame cutting, and precision machining without warping or developing micro-cracks.
Core International Standards & Steel Grades
- Common Structural Standards: ASTM A106 / A53 (Grades B and C)
- Standard for Structural & Pressure Applications : ASTM A252 (Grades 1, 2, and 3) - Specialized Specification for Structural Welded & Seamless Piling
- EN 10210 (S355JOH / S355J2H) - European Hot-Finished Structural Hollow Sections
- Choosing the correct grade depends on the minimum yield strength required (e.g., 355MPa for European S355 grades) and the environmental temperature conditions of the job site.
Essential Anti-Corrosion Surface Coatings
| Industrial Deployments | |
| Deep Foundation Piling | Bridge piers, high-rise foundations, port docks |
| Offshore Engineering | Jacket structures, oil platform legs, marine pilings |
| Heavy Machinery Components | Crane booms, chassis frames, mining rigs |
- Bridge Pier Foundations & Steel Piling: Driven deep into the earth or seabed to act as heavy-duty load-bearing friction piles for mega-bridges and marine terminals.
- Offshore Structural Engineering: Deployed as primary legs and brace members for offshore oil platforms and wind turbine jacket foundations, where failure is not an option.
- Long-Span Civil Infrastructure: Utilized as structural columns and heavy architectural trusses in modern airports, mega-stadiums, and high-rise commercial skyscrapers.
- Heavy Equipment Manufacturing: Formed into critical components for high-capacity industrial cranes, material handling masts, and large maritime vessel equipment.
Frequently Asked Questions (FAQ)
Q: Why choose seamless over LSAW (Longitudinal Submerged Arc Welded) for large-diameter structures?
A: While LSAW pipes are excellent and cost-effective for long-distance pipelines, seamless pipes offer superior performance in structural applications requiring high fatigue resistance under cyclic loads. The absence of a weld seam eliminates the risk of weld defects and localized stress concentrations, which is critical for heavy structural columns and offshore pilings.
Q: What is the maximum wall thickness available for large-diameter seamless pipes?
A: The maximum wall thickness depends on the outside diameter and the capability of the rolling mill. For large-diameter pipes (such as 24-inch OD), wall thicknesses can range from standard schedules up to "Super Extra Strong" (XXS) or customized dimensions exceeding 50 mm$ to meet specific heavy-engineering load calculations.
Q: Can these pipes be driven directly into the ground for structural piling?
A: Yes. Seamless structural pipes manufactured under standards like ASTM A252 are explicitly designed for piling applications. They can be driven directly using hydraulic hammers or utilized as hollow casings for cast-in-place concrete piles.
Q: How are large diameter seamless pipes protected against corrosion?
A: Depending on your shipping and project requirements, we provide various surface treatments. Options include a standard temporary anti-rust black varnish, light oil coating, hot-dip galvanization, or heavy-duty industrial coatings such as Fusion Bonded Epoxy (FBE) and 3-Layer Polyethylene (3LPE) for underground or underwater deployment.
Partner with a Certified Global Steel Supplier
Maximize your pipeline's lifespan and lower fluid transport friction with high-precision internal coatings. Contact our international sales division today to request technical material sheets, specify custom internal micron tolerances, or secure a competitive FOB or CIF quotation delivered directly to your port of destination.
