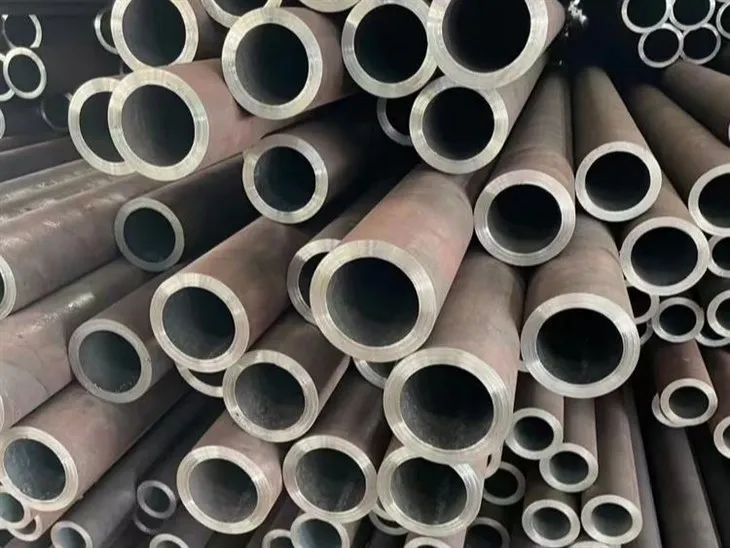

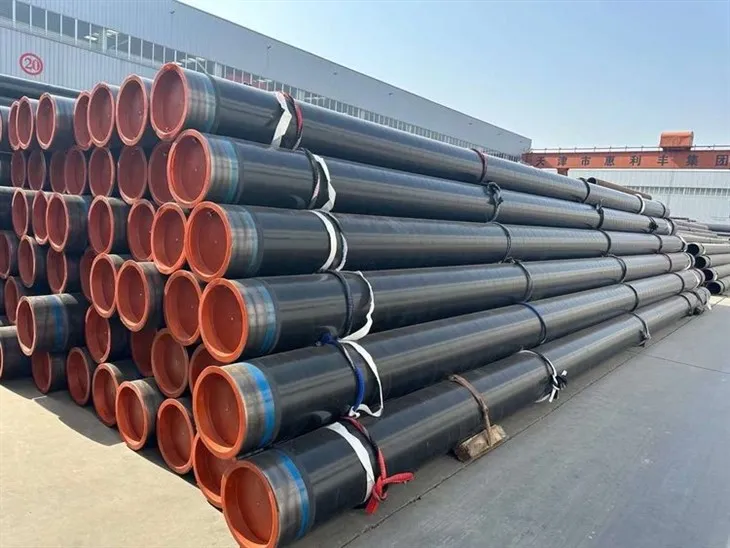

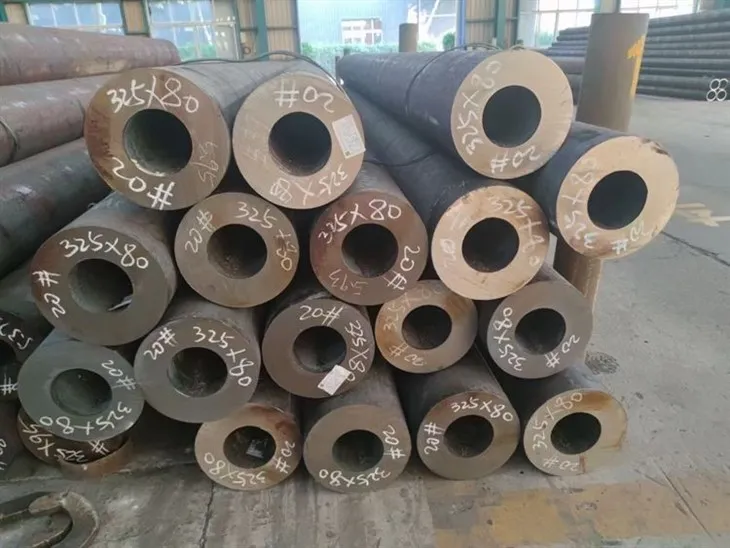

ASTM A106 GR.B SMLS STEEL PIPE

Tianjin Brisk Steel is one of the manufacturers of ASTM A106 GR.B SMLS STEEL PIPE in China. Our products are mainly exported to the Middle East, Southeast Asia, Europe, New Zealand, and other regions.If you would like to learn more about our products, feel free to contact us and send your purchase list.

 PRODUCT

Tianjin BRISK STEEL focus on produce and supply hollow section and steel pipe

Here are some of its special features that make it a popular choice among customers:

1. High strength: The ASTM A106 GR.B seamless pipe is made from high-quality materials that offer unparalleled strength and durability. It can withstand high-pressure and high-temperature conditions without any deformation or damage.

2. Corrosion resistance: The seamless pipe is coated with a layer of protective material that protects it from corrosion and rust. This makes it ideal for use in harsh and corrosive environments such as chemical and oil industries.

3. Smooth surface: The inside and outside surfaces of the pipe are smooth, which facilitates the flow of fluids and reduces the risk of blockages and leakages.

4. Versatility: The ASTM A106 GR.B seamless pipe is suitable for a wide range of applications, including oil and gas transmission, structural support, mechanical and structural engineering, and many others.

5. Precision manufacturing: The seamless pipe is manufactured using advanced techniques and equipment, which ensures its precise

dimensions and excellent quality.

Notes:

A Unless otherwise specified by the purchaser, for each reduction of 0.01 % below the specified carbon maximum, an increase of 0.06 % of manganese above the specified maximum will be permitted up to a maximum of 1.65 %.

B The total content shall not exceed 1 %.

Tensile Properties

Tensile strength: 485 MPa [70, 000 psi];

Yield strength: 275 MPa [40, 000 psi];

Elongation in 2 in. [50 mm]: 30 % min (longitudinal) or 16.5 % min (transverse);

Bendability

For pipe NPS 2 [DN 50] and under, a sufficient length of pipe shall stand being bent cold through 90° around a cylindrical mandrel, the diameter of which is twelve times the outside diameter of the pipe, without developing cracks.

For pipe whose diameter exceeds 25 in. [635 mm] and whose diameter-to-wall thickness ratio, is 7.0 or less, the bend test shall be conducted. The bend test specimens shall be bent at room temperature through 180° with the inside diameter of the bend being 1 in. [25 mm] without cracking on the outside portion of the bent portion.

Flattening Test

Although testing is not required, the pipe shall be capable of meeting the flattening test requirements of Supplementary Requirement S3, if tested.

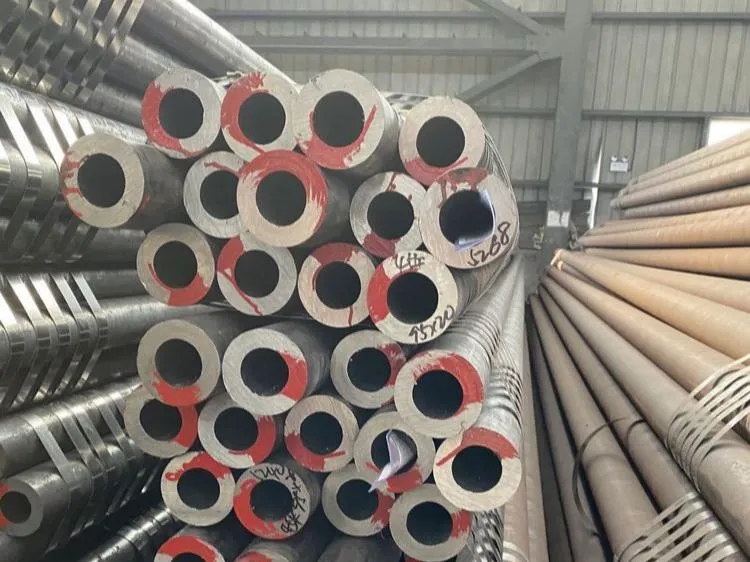

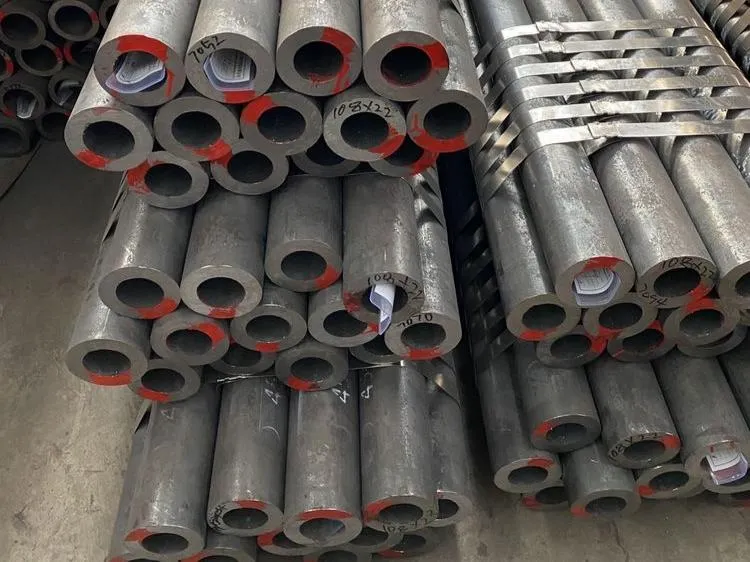

Cold Drawn (CD) ASTM A106 GR.B Pipe

The cold drawing process starts with a hot-finished seamless pipe blank, which is then drawn through a high-precision die (and often over a mandrel) at room temperature (or slightly above room temperature) without additional heating.

This process involves multi-pass drawing, with intermediate annealing treatments to reduce work hardening and improve ductility. The final cold draw pass is followed by heat treatment at 650°C (1200°F) or higher to optimize mechanical properties.

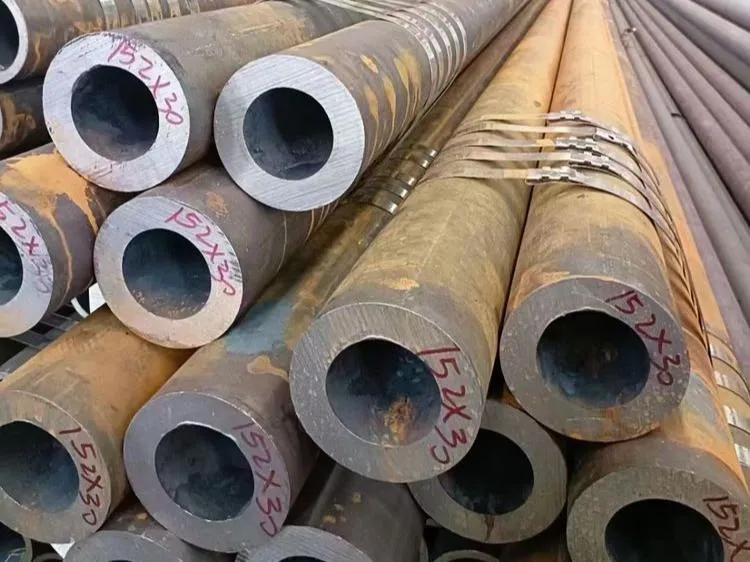

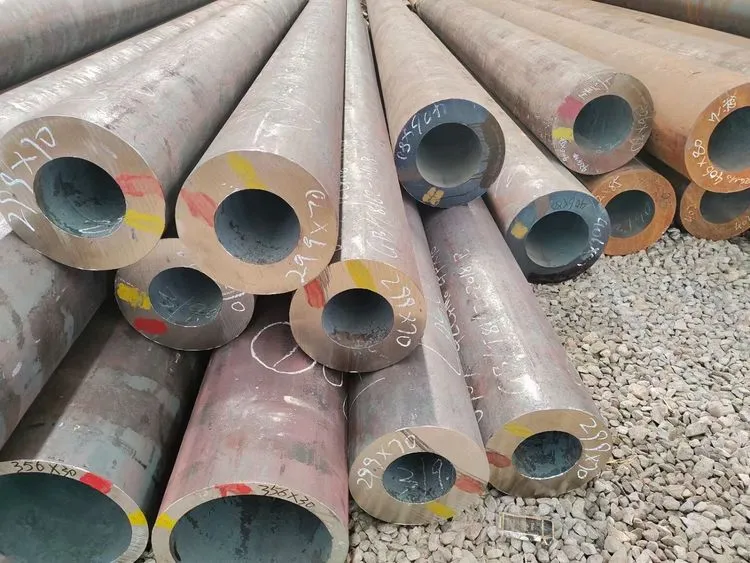

Hot Finished (HF) ASTM A106 GR.B Pipe

Hot finished pipes are processed at temperatures above the steel's recrystallization point (typically above 900°C/1652°F) after the initial piercing of the steel billet. The heated hollow shell is shaped and sized using rollers while still in a malleable, plastic state, allowing for easier formation of larger diameters and thicker walls.

Unlike cold drawn pipes, hot finished pipes generally do not require post-processing heat treatment unless specifically requested, and they cool naturally after forming to relieve residual stress.

If you are interested in our ASTM A106 GR.B SMLS STEEL PIPE, please contact us to get the latest price and we will provide you with a detailed quotation and product sample as soon as possible. We look forward to establishing long-term cooperative relationships with you!
