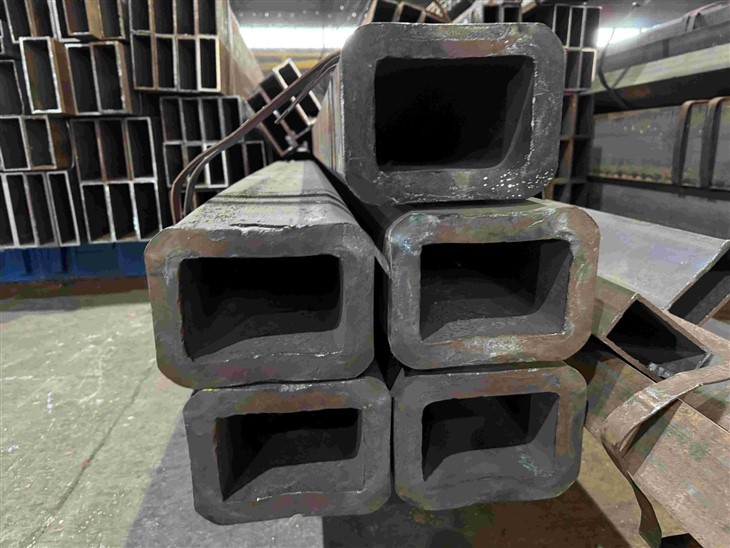

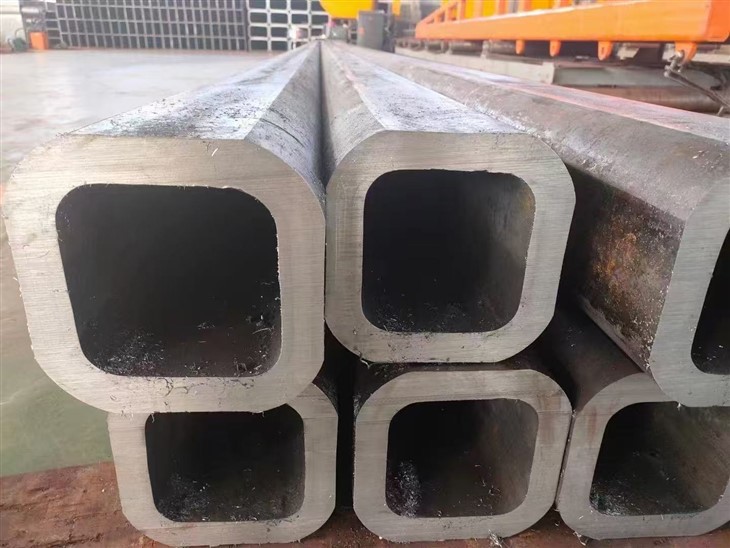

Thick Wall Large Size Rectangular Steel Pipe

Tianjin Brisk Steel is one of the Thick Wall Large Size Rectangular Steel Pipe in China. Our products are mainly exported to the Middle East, Southeast Asia, Europe, New Zealand, and other regions.If you would like to learn more about our products, feel free to contact us and send your purchase list.

 PRODUCT

Tianjin Brisk Steel focus on produce and supply hollow section and steel pipe

There's no single universal cutoff, but in practical sourcing terms:

• Large size typically starts around 300×300 mm and runs upward, with some mills producing sections well beyond 500×500 mm or large rectangular equivalents for specialized heavy fabrication work.
• Thick wall in this category generally means wall thickness from around 10 mm up through 25 mm or more, well beyond the 2–8 mm range typical of standard structural framing tube.

At these dimensions, the tube is frequently produced by a different route than smaller structural HSS - either welded from thick plate rather than roll-formed from coil, or produced as heavy-wall welded large-diameter tube and then formed to a rectangular or square profile, depending on the mill's process capability and the specific size ordered.

• Section modulus for genuinely large loads. Crane components, large machine bases, and heavy structural connections need section properties that thin-wall standard tube simply doesn't provide at reasonable overall dimensions - increasing wall thickness on a large section adds resistance to bending and torsion in a way that's often more practical than scaling up overall tube size alone.
• Weld-ability for heavy structural connections. Thick wall sections give fabricators enough material to work with for full-penetration welds, heavy gusset attachments, and repeated stress-cycle connections without the base metal becoming the limiting factor in the joint design.
• Resistance to impact and abrasion in demanding service. Foundation piling, mining and heavy equipment structural members, and marine/offshore fabrication all involve mechanical abuse that thin-wall tube isn't built to absorb - thick wall section provides margin against denting, gouging, and localized damage that would compromise a lighter section.
• Machining and connection tolerance. Heavy equipment bases often require machined mounting surfaces or bored holes for pins and bushings - thick wall material gives enough stock to machine without compromising the remaining structural cross-section.

For sizes and thicknesses at the upper end of this category, production commonly follows one of two routes:

• Formed from heavy plate. Steel plate is cut, formed (often through press-braking or rolling), and welded along one or more seams to build up the rectangular section - this route offers flexibility in size and thickness combinations that aren't standard roll-forming line products, at the cost of more welding and typically longer lead time.
• Welded from heavy-wall coil or formed round tube. Where the size falls within a mill's heavy-gauge forming line capability, the tube may be formed and welded in a continuous process similar to standard structural tube production, just on heavier-duty equipment designed for thick material.

Buyers should ask which route a given size and thickness combination will actually be produced by, since it affects lead time, minimum order quantity, and the specific weld inspection approach that applies.

• ASTM A500 - covers cold-formed welded structural tubing and remains relevant at the smaller end of this category, though very large or very thick sections may exceed what standard A500 production covers.
• ASTM A1085 - a more recent structural HSS standard with distinct wall thickness and toughness requirements compared to A500, increasingly specified for heavy structural sections.
• EN 10219 / EN 10210 - European standards for cold-formed and hot-finished structural hollow sections respectively, with EN 10210 (hot-finished) sometimes more relevant to larger, heavier sections than cold-formed EN 10219.
• Project-specific fabrication specifications - for genuinely custom heavy sections outside standard structural tube ranges, many orders are produced to a project engineer's specific dimensional and material spec rather than a single named tube standard.
