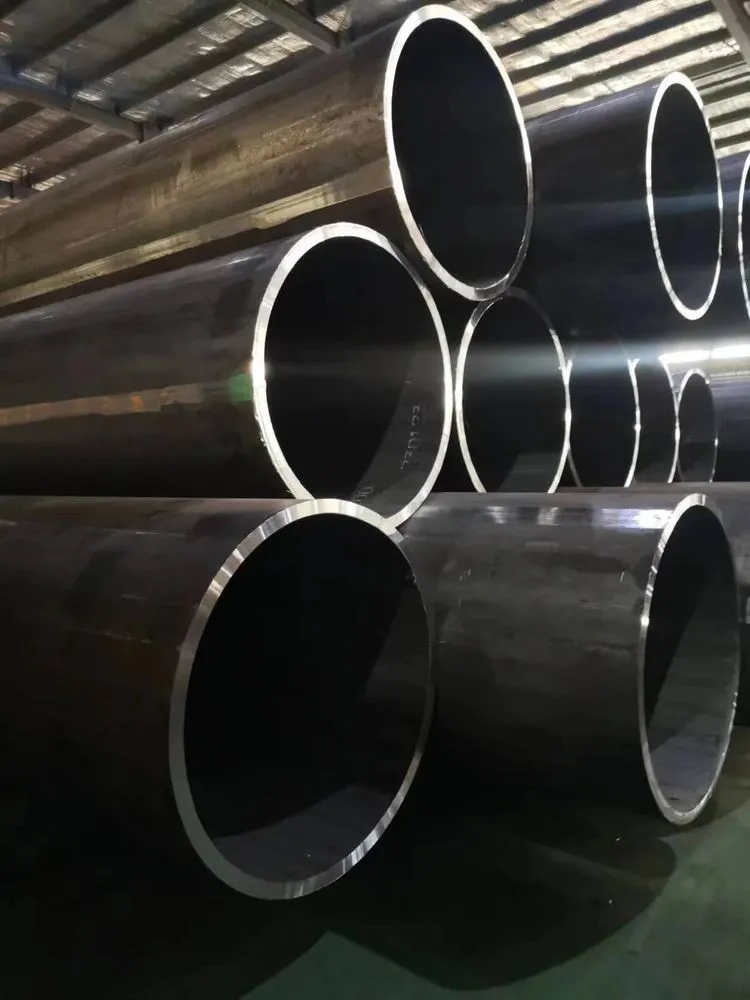

Name: China EN 10219 STEEL PIPE Manufacturers and Suppliers - EN 10219 STEEL PIPE Factory
Brand: BRISK STEEL
SKU: 263939376

DIMENSIONS AND SIZES OF EN 10219 PIPE

DN	O. D.		W. T.
DN	Inch	mm	SCH5S	SCH10S	SCH10	SCH20	SCH30	SCH40	SCH60	SCH80	SCH100	SCH120	SCH140	SCH160	STD	XS	XXS
50	2″	60.3	1.65	2.77	–	–	–	3.91	–	5.54	–	–	–	8.74	3.91	5.54	11.07
65	2 1/2″	73	2.11	3.05	–	–	–	5.16	–	7.01	–	–	–	9.53	5.16	7.01	14.02
80	3″	88.9	2.11	3.05	–	–	–	5.49	–	7.62	–	–	–	11.13	5.49	7.52	15.24
90	3 1/2″	101.6	2.11	3.05	–	–	–	5.74	–	8.08	–	–	–	–	5.74	8.08	–
100	4″	114.3	2.11	3.05	–	–	–	6.02	–	8.58	–	11.13	–	13.49	6.02	8.56	17.12
125	5″	141.3	2.77	3.4	–	–	–	6.55	–	9.53	–	12.7	–	15.88	6.55	9.53	18.05
150	6″	168.3	2.77	3.4	–	–	–	7.11	–	10.97	–	14.27	–	18.26	7.11	10.97	21.95
200	8″	219.1	2.77	3.76	–	6.35	7.04	8.18	10.31	12.7	15.09	18.26	20.62	23.01	8.18	12.7	22.23
250	10″	273.1	3.4	4.19	–	6.35	7.8	9.27	12.7	15.09	18.26	21.44	25.4	28.58	9.27	12.7	25.4
300	12″	323.9	3.96	4.57	–	6.35	8.38	10.31	14.27	17.48	21.44	25.4	28.58	33.32	9.53	12.7	25.4
350	14″	355.5	3.96	4.78	6.35	7.92	9.53	11.13	15.09	19.05	23.83	27.79	31.75	35.71	9.53	12.7	–
400	16″	406.4	4.19	4.78	6.35	7.92	9.53	12.7	16.66	21.44	26.19	30.96	36.53	40.49	9.53	12.7	–
450	18″	457.2	4.19	4.78	6.35	7.92	11.13	14.27	19.05	23.83	39.36	34.93	39.67	45.24	–	–	–
500	20″	508	4.78	5.54	6.35	9.53	12.7	15.09	20.62	26.19	32.54	38.1	44.45	50.01	–	–	–
550	22″	558.8	4.78	5.54	6.35	9.53	12.7	–	22.23	28.58	34.93	41.28	47.63	53.98	–	–	–
600	24″	609.6	5.54	6.35	6.35	9.53	14.27	17.48	24.61	30.96	38.89	46.02	52.37	59.54	–	–	–

WELDABILITY OF EN 10219 PIPE

BRISK STEEL are specified in this European standard. EN 1011-1 and EN 1011-2 specify the main standards for welding products under this European standard.

When welding these products, the greatest danger is the development of cold cracking in the welded zone as the product thickness, strength level, and CEV rise. Cold cracking is a result of a combination of the following factors:

• elevated diffusible hydrogen levels in the weld metal;
• a brittle structure in the heat-affected zone;
• and large tensile stress concentrations in the welded joint

CHEMICAL COMPOSITION REQUIREMENT OF EN 10219 PIPE

Please check the table below for the chemical composition requirement of EN 10219 structural hollow sections, thickness ≤ 40mm.

product-1-1

MECHANICAL PROPERTIES OF EN 10219 PIPE

The table below lists the required mechanical properties for EN 10219 structural hollow sections.

product-1-1

INSPECTION OF EN 10219 HOLLOW SECTIONS OF NON-ALLOY STEELS

EN 10219 is tensile tested according to EN 10002-1 and Charpy impact tested according to EN 10045-1.

Inspection Requirements			Inspection Frequency
Type of test			Non-specific inspection	Specific inspection
Mandatory tests	1	Cast analysis	One result per delivery item	One per cast
	2	Tensile test	One result per delivery item	One per test unit ( b)
	3	Impact test for Qualities J2 and K2 only	Not applicable	One set per test unit (b)
	4	Surface condition and dimensions	–	–
	5	NDT of the weld	Not applicable	All products, full length
Optional tests	6	Product analysis	Not applicable	One per test unit a
	7	Cast analysis additional elements	Not applicable	See Option 1.2
	8	Impact test for qualities JR and J0	Not applicable	One set per test unit (b)
b – Longitudinal or transverse samples at the discretion of the manufacturer.

INSPECTION OF EN 10219 HOLLOW SECTIONS OF FINE-GRAIN STEELS

Inspection Requirements			Inspection Frequency
Type of test			Specific inspection
Mandatory tests	1	Cast analysis	One per cast
	2	Tensile test	One per test unitF( b)
	3	Impact test	One set per test unit (b)
	4	Surface condition and dimensions	–
Optional tests	5	NDT of the weld	All products, full length
Optional tests	6	Product analysis	One per test unit a
b – Longitudinal or transverse samples at the discretion of the manufacturer.
