Tianjin Brisk Metalwork Co., Ltd. is one of the leading manufacturers and suppliers of en 10216-2 seamless steel pipe in China. We have world-leading production equipment and strong manufacturing capabilities. Please feel free to buy bulk durable en 10216-2 seamless steel pipe from our factory.

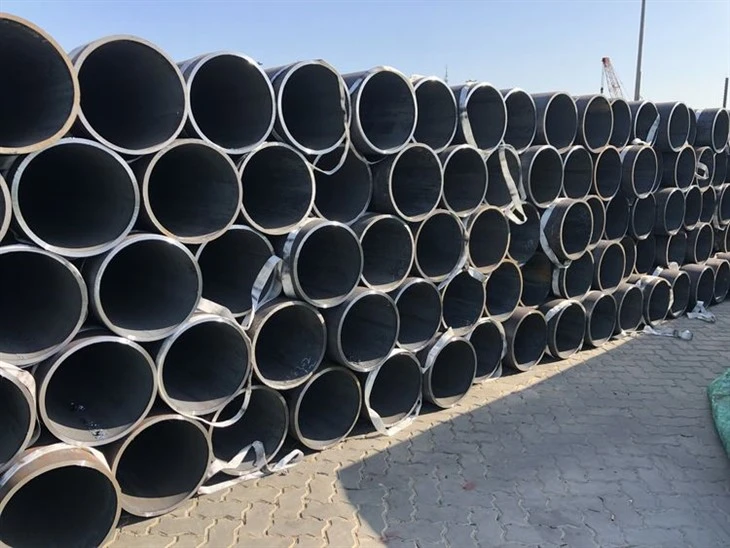

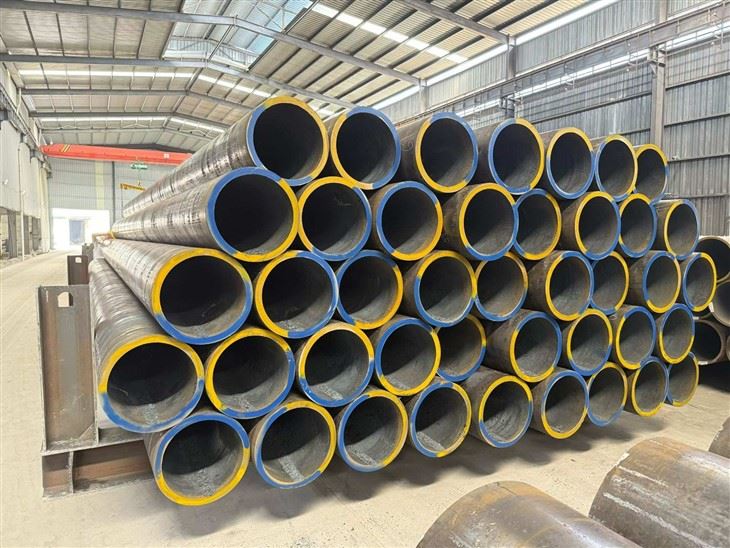

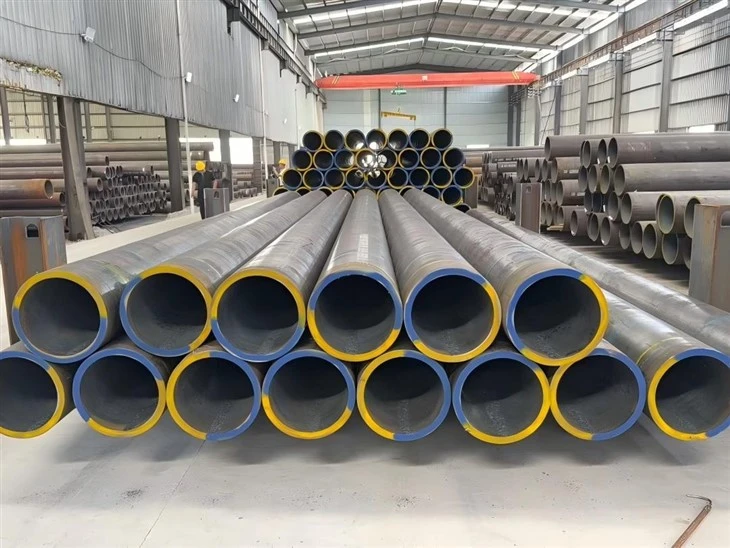

EN 10216-2 Seamless Steel Pipe
EN 10216-2 is the widely recognized European specification for non-alloy seamless steel tubes designed for pressure purposes at elevated temperatures. It belongs to the EN 10216 series for pressure bearing seamless pipes, formulated to satisfy PED pressure equipment directive requirements across EU and EEA markets.
Unlike ASTM A106 which follows American material testing frameworks, EN 10216-2 adopts European norm for inspection, traceability and acceptance criteria for boiler, heat exchanger and process pressure piping.
Brisk Steel manufactures and exports EN 10216-2 seamless pipe in P235GH and P265GH grades. Every batch complies with CE marking supporting documentation and strict heat analysis.
ASTM A53 Grades & Core Characteristics
The standard covers two primary non-alloy steel grades, tailored for different pressure and temperature operating ranges. The "GH" suffix denotes steel for elevated temperature service with normalized delivery condition:
- P235GH: Lower yield grade with excellent ductility and good formability. Suited for moderate pressure and temperature environments, widely used in auxiliary boiler circuits and low-load heat exchanger piping.
- P265GH: Higher yield strength variant, the most frequently specified grade in this standard. Delivers reliable mechanical performance under sustained high-temperature pressure load, ideal for main boiler pipelines and chemical process pressure vessels connected tubing.
|
Item |
Specification |
|---|---|
|
Available Grades |
P235GH, P265GH |
|
Manufacturing Process |
Hot rolled seamless, cold drawn seamless |
|
Outer Diameter Range |
16mm – 610mm |
|
Wall Thickness Range |
2.3mm – 80mm |
|
Delivery Condition |
Normalized |
|
Standard Length |
6m / 12m, custom cut to length |
|
Pipe End |
Plain end, bevel end for butt welding |
|
Surface Treatment |
Black varnish, primer coating, shot blasting on request |
Unique Product Advantages
EN 10216-2 seamless pipe holds distinct benefits for projects following European engineering codes:
- PED Compliance Support Material properties and test procedures meet European Pressure Equipment Directive, simplifying CE documentation and local engineering approval.
- Normalized Heat Treatment Uniform grain structure reduces internal stress, lowering risk of deformation during high-temperature cyclic operation.
- Strict Traceability Full heat number tracking from steel billet to finished pipe, mandatory for European industrial pressure project audits.
- Controlled High Temperature Proof Strength Minimum yield values are defined at elevated temperatures for safe pressure design calculation.
- Good Weldability Balanced carbon equivalent allows standard welding procedures for site assembly of boiler and process piping.
Independent Project Shipment Case
Brisk Steel delivered EN 10216-2 P265GH seamless pipes for a district heating expansion project in Ireland.
- Project Usage Underground high pressure steam network for city commercial district heating
- Product Spec EN 10216-2 P265GH, OD 273mm, WT 8mm, 12m fixed length, shot blast + black primer, bevel ends
- Inspection Requirement EN 10204 3.2 certificate, witnessed third-party inspection
- Shipment Info Total 276 tons, loaded in 6 containers. Heat numbers marked on every pipe for full traceability.
- Project Outcome All pipes passed local third-party audit and site pressure test, installed into district heating pressure network.
Frequently Asked Questions About Seamless Steel Pipe
Q: What is the difference between EN 10216-2 P265GH and ASTM A106 Gr.B?
A: P265GH follows European PED regulation and normalized delivery condition, designed for EU pressure equipment projects. ASTM A106 is an American boiler tube standard. Material performance is similar, but test rules, certificate format and code acceptance differ. Project design standard determines which pipe to select.
Q: What does GH mean in P235GH and P265GH?
A: GH stands for "Geschweißt Hochtemperatur" / elevated temperature service steel. It means the steel is suitable for high temperature operation and supplied in normalized condition.
Q: Can EN 10216-2 pipe be used for non-pressure structural works?
A: Technically usable, but economically not recommended. EN 10216-2 is a pressure pipe with strict inspection cost. General structural projects can choose cheaper structural seamless pipe grades.
Q: What is the difference between TC1 and TC2?
A: TC1 and TC2 define different testing and inspection requirements under EN 10216-2. The exact requirements should be verified against the applicable edition and the ordered product configuration.
