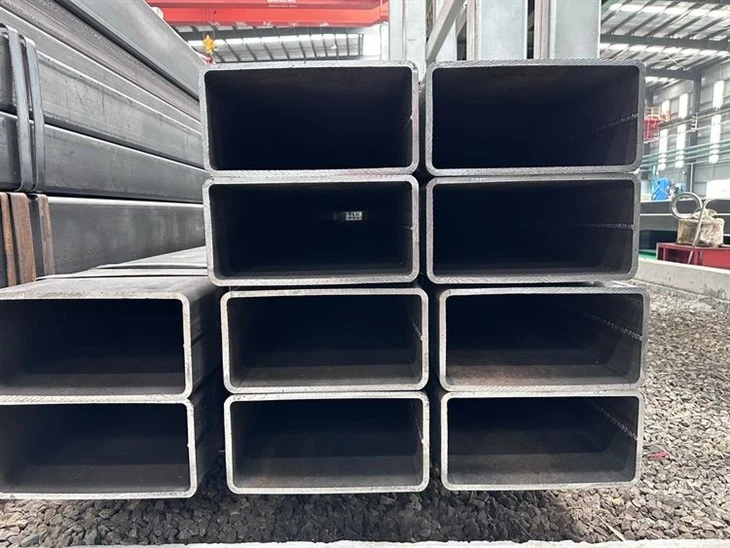

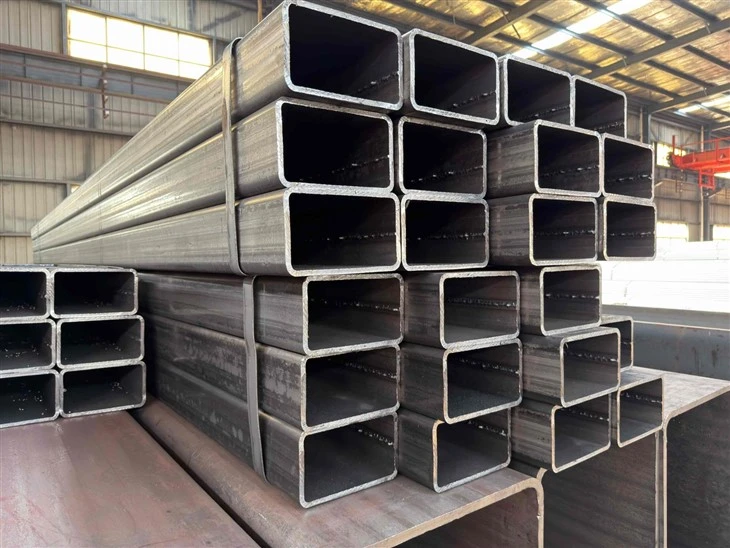

Tianjin Brisk Steel is one of the manufacturers of Rectangular ERW Steel Tubes in China. Our products are mainly exported to the Middle East, Southeast Asia, Europe, New Zealand, and other regions.If you would like to learn more about our products, feel free to contact us and send your purchase list.
Manufactory Process
- ERW = Electric Resistance Welded (with High-Frequency Resistance Welding, or HFW, being the mainstream method): Steel strip is formed into shape, and the seam is fused using high-frequency current. This process allows for continuous mass production at a lower cost than seamless pipe, and the weld seam strength can match that of the base metal.
- ERW Rectangular Pipe / RHS Tube / Cold Formed Rectangular Hollow Section
ERW RHS Process
Mainstream Standards & Grades
| Parameter | Specifications & Capabilities |
| Standard Compliance | ASTM A500 (Grades A, B, C), EN 10219, JIS G3466, AS/NZS 1163 |
| Common Steel Grades | S235JR/J0, S355JR/J0/J2, Grade B, Grade C, STKR 400, C350, C350L0 |
| Dimension Range | 20x10 mm to 600x400 mm |
| Wall Thickness (WT) | 0.8 mm to 16.0 mm |
| Length Options | 5.8m (20ft container), 6.0m, 11.8m, 12.0m (40HC container), or custom cut lengths |
| End Execution | Square Cut Plain Ends (Deburred) or precision factory edge preparation |
| Surface Treatment | Black tube / Mill finish, Hot-dip galvanized (HDG), Pre-galvanized, black paint, varnish, powder coating |
More Details For Surface Treatment
Core Advantage
- Excellent flexural and torsional performance; requires less material than angle or channel steel; offers a high strength-to-weight ratio.
- High dimensional accuracy and a smooth, aesthetically pleasing exterior finish; facilitates easy processing, cutting, welding, and assembly.
- High mass-production efficiency and short lead times; offers superior cost-effectiveness compared to seamless rectangular tubing for large-scale structural projects.
- Uniform shape and profile; provides a superior visual appearance for exposed architectural steel structures.
Application
- Construction: Factory frameworks, prefabricated housing, bus shelter frames, curtain wall supports, steel structural beams and columns
- Transportation Infrastructure: Road guardrails, billboard supports, trailer chassis, rail transit components
- Industrial Manufacturing: Equipment frames, warehouse racking, photovoltaic mounting systems, construction machinery bases
- Civil Applications: Greenhouses, guardrails and fencing, steel furniture, container auxiliary components
FAQ
Q: What is the difference between S235 and S355 RHS? Which one should I choose?
A: S355 has higher tensile & yield strength. Under the same load requirement, S355 adopts thinner wall thickness to cut your total material cost. S235 is enough for ordinary guardrails & greenhouses; S355 is recommended for factory frames, bus station structures and photovoltaic brackets.
Q: What is your normal dimensional tolerance for rectangular tubes?
A: Outer dimension tolerance ±0.05mm, wall thickness tolerance follows standard requirements. Tube straightness and corner radius (2T~3T) are strictly controlled by sizing & straightening machines.
Q: What is your MOQ for export RHS tubes?
A: Our minimum order quantity is 25 tons per batch, which can effectively reduce your unit cost on production, packing and port handling fees.
Q: Can you process bending, drilling and punching on ERW rectangular tubes?
A: Yes, we support secondary deep processing for RHS tubes. We can provide cold bending, hot bending, hole drilling, punching, cutting, chamfering and notching services according to customers' drawings or dimension requirements.
