Tianjin Brisk Steel is one of the manufacturers of ERW Carbon Steel Pipe in China. Our products are mainly exported to the Middle East, Southeast Asia, Europe, New Zealand, and other regions.If you would like to learn more about our products, feel free to contact us and send your purchase list.
Product Definition
An ERW Carbon Steel Pipe (Electric Resistance Welded Carbon Steel Pipe) is a high-precision structural and fluid-conveying pipe manufactured from hot-rolled or cold-rolled carbon steel strip coils. The manufacturing process utilizes high-frequency electric resistance heat to forge the longitudinal seam without adding filler metal, creating a high-strength, uniform, and reliable joint along the entire length of the tube.
Engineered to perform under mechanical stress, internal fluid pressure, and ambient environmental challenges, ERW carbon steel piping provides an optimal balance between high structural strength, tight dimensional tolerances, and cost-effectiveness compared to seamless pipes.
The key characteristics of ERW carbon steel pipe include:
| Feature | Description |
|---|---|
| Product Name | ERW Carbon Steel Pipe |
| Manufacturing Method | High-frequency Electric Resistance Welding |
| Material | Carbon Steel |
| Pipe Type | Longitudinal Welded Pipe |
| Surface | Black, Painted, Galvanized, Coated |
| Shape | Round Pipe |
| Application |
Structural and Fluid Transportation |
Production Process and Core Technological Advantages
The quality of an ERW carbon steel pipe depends heavily on metallurgical control and mill technology. Modern production involves precise, automated stages:

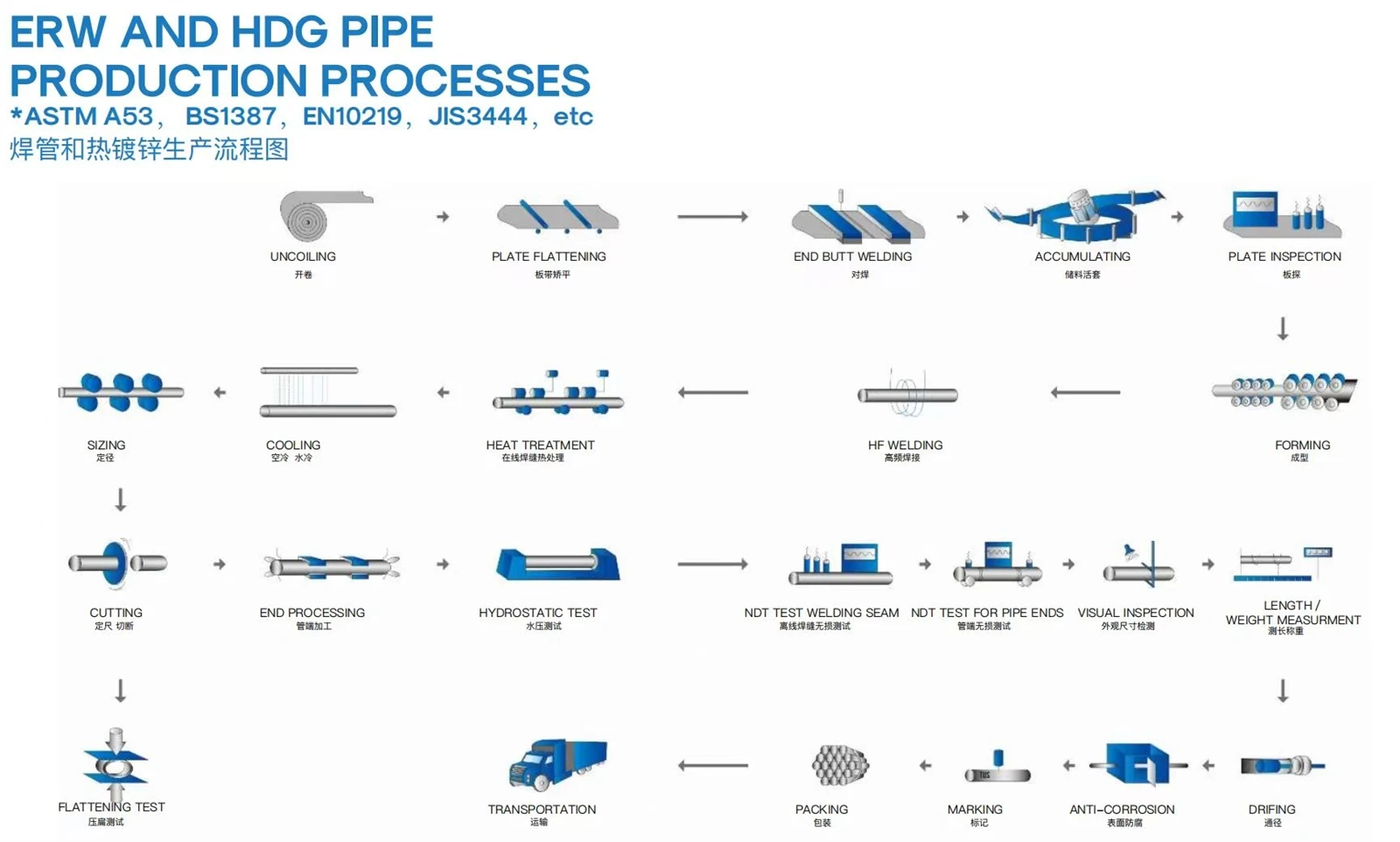

ERW Process
Advanced Manufacturing Highlights
- High-Frequency Welding (HFW): Operating at frequencies between 300 kHz and 500 kHz, high-frequency current generates localized thermal energy purely through resistance. This rapidly melts and fuses the pipe edges without adding filler metal or modifying the base metal chemistry.
- Scarfing and Micro-Finishing: Automated carbide cutters remove external and internal weld beads immediately after welding, producing a smooth interior bore and flush exterior surface.
- In-Line Heat Treatment (Seam Annealing): The weld zone undergoes high-temperature normalization heat treatment to refine the grain structure, eliminating localized residual stresses and restoring ductility equal to the base steel strip.
ERW Carbon Steel Pipe Specifications
| Item | Specification Range |
|---|---|
| Outer Diameter | 21.3mm - 630mm (customized available) |
| Wall Thickness | 1.0mm - 18mm+(SCH 10, SCH 20, SCH 40, SCH 80, STD, XS) |
| Length | 6m, 12m or customized |
| Steel Grade | ASTM A53, API 5L, Q235, Q345, etc. |
| Pipe End | Plain End, Beveled End, Threaded End |
| Surface Treatment | Black, Painted, Galvanized, 3PE Coating |
| Production Type | ERW Welded |
Industry Standards and Material Grades
| Standard Category | Standard Number | Applicable Grade/Specification | Standard Description |
| ASTM Specifications | ASTM A53 / A53M | Grade A, Grade B | Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless |
| ASTM A500 / A500M | Grade A, Grade B, Grade C | Cold-Formed Welded and Seamless Carbon Steel Structural Tubing | |
| ASTM A135 / A795 | - | Fire protection and sprinkler system piping | |
| API Specifications | API 5L | PSL1 and PSL2 (Grades A25 through X70) | Line Pipe for Oil and Gas Transportation Systems |
| European Standards (EN) | EN 10219 / EN 10210 | S235JRH, S275J0H, S355J2H | Cold formed or hot finished structural hollow sections |
| Chinese National Standards (GB) | GB/T 3091 | Q235B, Q345B/S355 | Welded steel pipes for low-pressure fluid delivery |
Main Applications of ERW Carbon Steel Pipe
Oil and Gas Pipeline
ERW carbon steel pipe manufactured according to API 5L standards is widely used in oil and gas transportation systems because of its excellent weld strength and pressure resistance.
Construction and Structural Engineering
ASTM A500 ERW steel pipes are commonly used in: Steel buildings,Bridges,Warehouses,Support structures,Their high strength-to-weight ratio helps reduce construction costs.
Water Supply Systems
Carbon steel ERW pipes are suitable for: Municipal water pipelines,Industrial water systems,Fire protection systems
Machinery Manufacturing
Due to accurate dimensions and excellent machinability, ERW pipes are widely used in mechanical equipment frames and components.
Industry Pain Points Addressed by Premium ERW Piping
Selecting industrial piping involves balance between material performance, project budget, and operational safety. Standard low-tier piping options often present critical operational challenges:
Risk of Seam Leakage and Mechanical Failures
- The Pain Point: Poorly welded seams lead to micro-fractures, pressure drops, or catastrophic leaks under hydraulic pressure or mechanical strain.
- Our Solution: Advanced High-Frequency Electric Resistance Welding (HFW) combined with Online Ultrasonic Testing (UT) guarantees complete seam fusion, full weld penetration, and pressure integrity.
Wall Thickness Inconsistency
- The Pain Point: Non-uniform wall thickness causes uneven load distribution, premature localized corrosion, and fitting alignment difficulties during site fabrication.
- Our Solution: Automated cold-roll forming and continuous laser measurement systems ensure exact dimensional tolerances across the entire circumference and length of every pipe length.
High Cost of Seamless Pipes for Low-to-Medium Pressure Uses
- The Pain Point: Utilizing seamless carbon steel pipes for structural applications or low-to-medium pressure fluid lines inflates procurement budgets unnecessarily.
- Our Solution: Premium ERW pipes deliver structural and pressure capacities that match or approach seamless equivalents across low-to-medium pressure ratings at a 20% to 35% reduction in material cost.
Processing, Fabrication, and Customization Capabilities
To reduce field installation costs and turnaround times, mill-direct secondary processing services are available:
- Custom Surface Coating: Factory-applied hot-dip galvanizing, 3-layer polyethylene (3LPE), fusion-bonded epoxy (FBE), or heavy-duty epoxy coal tar coatings for aggressive underground or marine environments.
- Precision End Preparation: 30° to 35° automated end beveling for field welding, precision roll grooving for quick-connect couplings, and male/female threading conforming to ANSI/ASME B1.20.1 standards.
- Precision Cutting & Fabrication: Laser cut-to-length services, slotting, perforating, hole drilling, and custom bending to engineering drawings.
Key Performance Advantages
| Advantage | Explanation |
|---|---|
| High Strength | Reliable welded structure with excellent mechanical performance |
| Accurate Dimensions | Precise OD and wall thickness control |
| Cost Effective | Lower production cost compared with seamless pipe |
| Smooth Surface | Reduced internal flow resistance |
| Fast Production | Suitable for large quantity orders |
| Customizable | Flexible sizes, grades, and coatings |
- High Dimensional Precision: Modern roll-forming mills maintain exceptionally tight tolerances on outer diameter, wall thickness, and ovality, facilitating easy align-and-fit operations during field welding or mechanical joining.
- Superior Concentricity: Cold-formed coil steel ensures uniform wall thickness across 360 degrees, eliminating weak spots common in forged or hot-finished heavy wall pipes.
- Excellent Surface Finish: Smooth interior and exterior surfaces reduce fluid friction factors ($k$-factor), minimize pressure loss in pumping operations, and prevent internal scale buildup.
- Economical Scalability: Continuous automated welding yields high production throughput, offering reduced lead times and cost efficiency for large-scale infrastructure projects.
Products Description
Understanding the structural differences between pipe manufacturing methods aids in selecting the correct product for specific design parameters:
| Performance Metric | ERW (Electric Resistance Welded) | LSAW (Longitudinal Submerged Arc) | Seamless Steel Pipe |
| Manufacturing Method | Continuous roll forming + High-Frequency resistance welding | Heavy plate press forming + Submerged arc wire welding | Solid billet rotary piercing & extruding |
| Diameter Availability | Small to Medium (1/2" to 24") | Medium to Large (16" to 60") | Small to Medium (1/8" to 28") |
| Wall Thickness Range | Thin to Medium Wall (Up to 22mm) | Medium to Extra Thick Wall (Up to 50mm+) | Medium to Heavy Wall (Up to 80mm) |
| Dimensional Tolerance | Very High (Uniform coil thickness) | Moderate | Moderate (Rotary wall variations) |
| Cost Efficiency | High (Most cost-effective) | Moderate | Low (High energy production cost) |
| Pressure Rating | Low to Medium-High Pressure | High to Very High Pressure | Very High to Extreme Pressure |
Frequently Asked Questions (FAQ)
Q: What is the main difference between ERW steel pipe and Seamless steel pipe?
A: ERW (Electric Resistance Welded) steel pipe is manufactured by cold-forming a steel strip into a cylindrical shape and welding the longitudinal seam using high-frequency electric current. Seamless steel pipe is manufactured by piercing a solid steel round billet at high temperatures. ERW pipes offer tighter dimensional tolerances, higher wall thickness uniformity, shorter lead times, and lower costs. Seamless pipes are primarily chosen for extreme high-pressure or high-temperature environments where longitudinal welds are disallowed by code.
Q: Can ERW carbon steel pipe be used for high-pressure gas or oil transportation?
A: Yes. ERW carbon steel pipes manufactured under the API 5L specification (PSL1 and PSL2) using modern High-Frequency Welding (HFW) and full-seam heat treatment (PWHT) are widely certified and deployed globally for oil, gas, and hydrocarbon transportation in medium to high-pressure gathering and distribution lines.
Q: What anti-corrosion coating options are best for underground ERW pipe installation?
A: For underground or harsh soil environments, 3-Layer Polyethylene (3LPE) or Fusion-Bonded Epoxy (FBE) factory coatings provide the strongest long-term protection against moisture, oxidation, and cathodic disbondment. For simpler underground water services, heavy hot-dipped galvanizing or bitumen coatings serve as effective, economic options.
Q: How do I select between ASTM A53 Grade A and Grade B ERW pipe?
A: The primary distinction lies in their mechanical yield and tensile strength. ASTM A53 Grade B features higher carbon and manganese content, yielding a minimum tensile strength of 415 MPa (60,000 psi) compared to Grade A's 330 MPa (48,000 psi). Grade B is the standard industry selection for structural loads, high-stress piping, and general pressure applications, while Grade A offers greater ductility for severe cold coiling or close bending operations.
Why Choose Our ERW Carbon Steel Pipe?
Choosing a professional ERW carbon steel pipe supplier ensures:
✔ International standard compliance
✔ Stable product quality
✔ Competitive factory pricing
✔ Customized manufacturing capability
✔ Complete inspection documents
✔ Reliable delivery schedule
ERW Carbon Steel Pipe is not only a steel product but also a long-term engineering solution designed for safety, efficiency, and durability.
