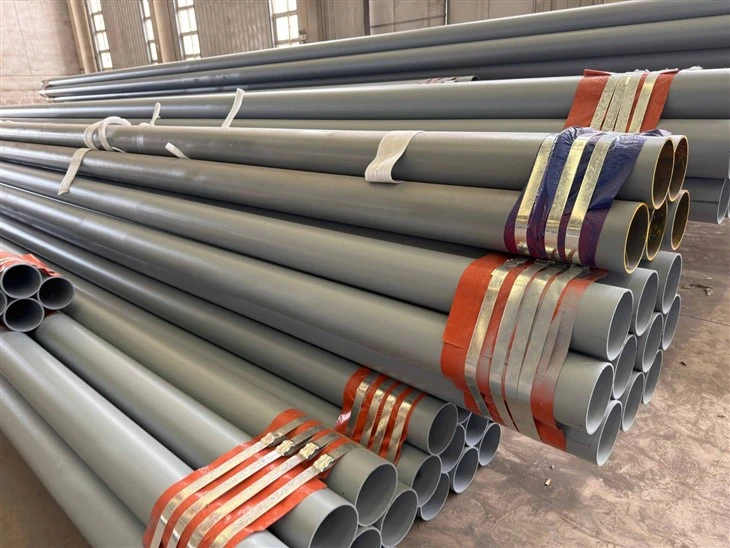

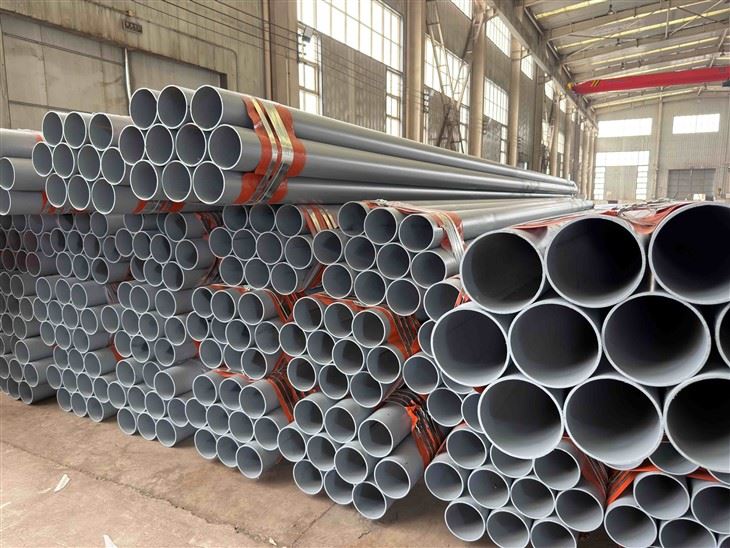

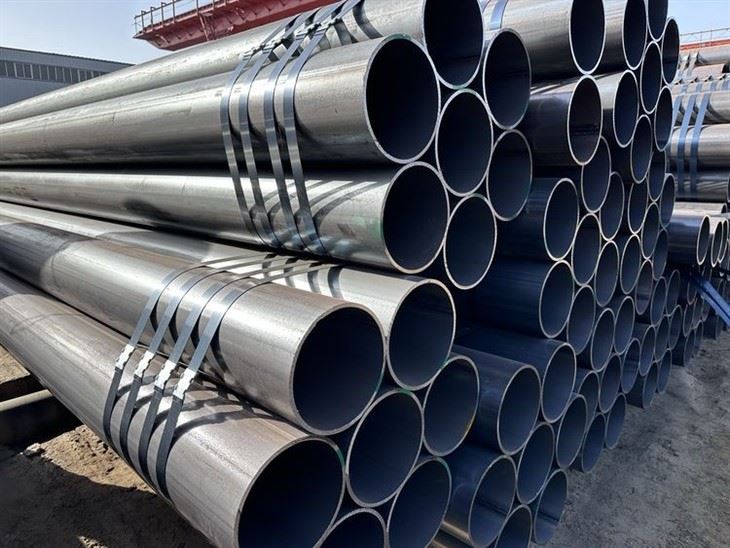

Tianjin Brisk Steel is one of the manufacturers of EN10217 P235TR1 Pipe For Industrial Equipment in China. Our products are mainly exported to the Middle East, Southeast Asia, Europe, New Zealand, and other regions.If you would like to learn more about our products, feel free to contact us and send your purchase list.
The Engineering Behind EN 10217 P235TR1
Sourcing pressure-rated steel pipes requires a precise understanding of the mechanical and metallurgical benchmarks defined by European standards:
- EN 10217-1 Standard Compliance: This standard specifies the technical delivery conditions for welded tubes of circular cross-section made from non-alloy quality steels with specified room temperature properties.
- P235 Steel Designation: The "P" denotes that the steel is explicitly rated for Pressure Purposes, while "235" indicates a guaranteed minimum yield strength of 235 MPa. This optimized yield profile ensures the necessary structural rigidity to handle internal fluid pressures in low-to-medium pressure applications.
- TR1 Quality Qualifiers: The "TR1" suffix signifies a specific quality level within the EN 10217 standard. TR1 tubes are designed for general pressure and fluid applications where explicit impact toughness testing values are not structurally mandated by the project code, offering a highly economical alternative to TR2 grades.
- Electric Resistance Welded (ERW) Process: Our pipes are cold-formed from high-grade steel strips and longitudinally welded using high-frequency induction currents. The resulting weld seam is formed at a molecular level without filler metals, creating a uniform, continuous cylinder that matches the strength of the parent metal.
ERW PROCESS

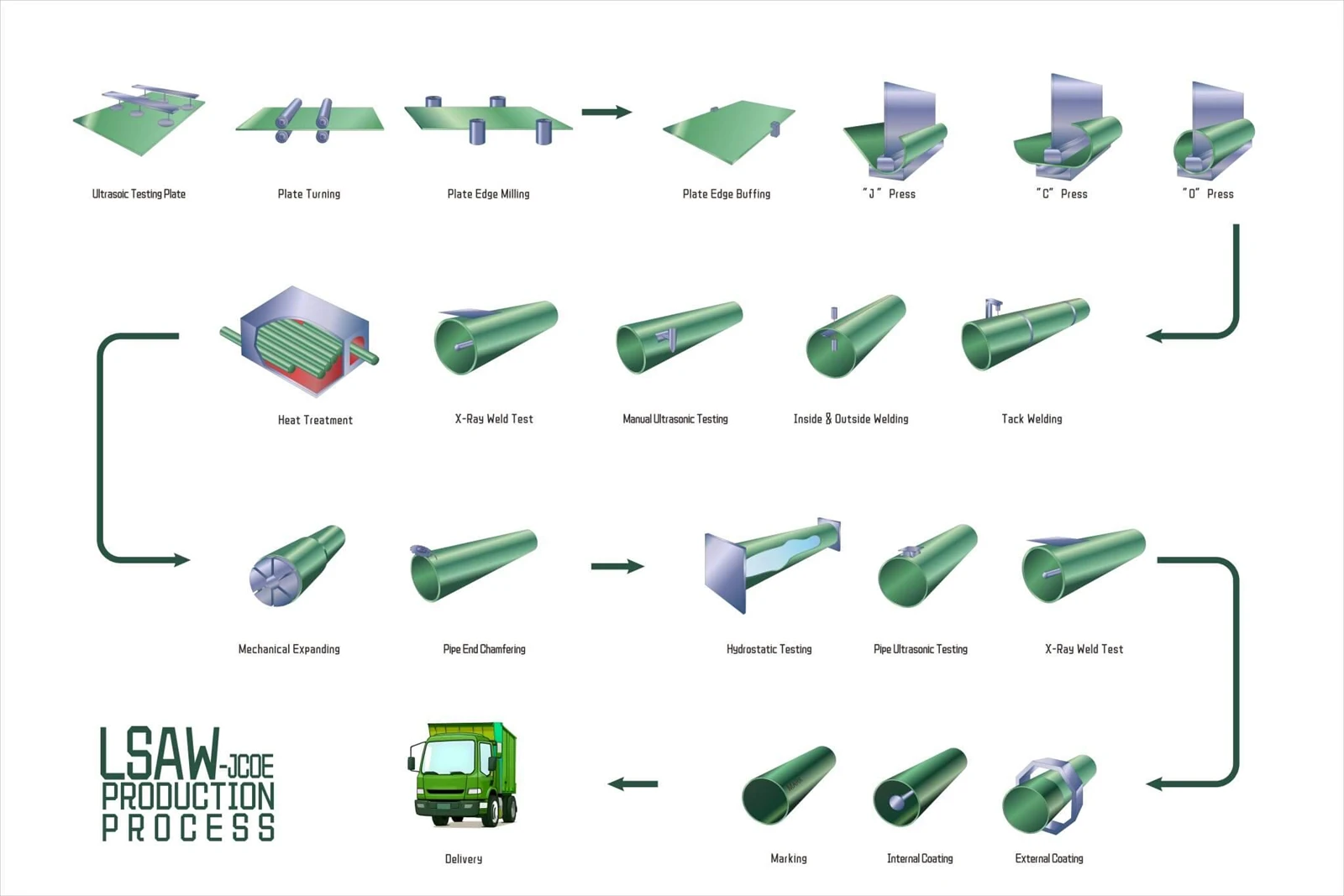

LSAW PROCESS
Key Performance Advantages & Product Benefits
Exceptional Workability and Easy Field Welding
With a strictly controlled, low carbon equivalent chemistry, P235TR1 steel features outstanding ductility. Industrial equipment builders can easily cut, cold-bend, machine, and weld these pipes on the workshop floor using standard automated or manual processes without requiring complex pre-heating cycles.
High Dimensional Accuracy for Precision Machinery
Our automated high-frequency welding and sizing mills enforce strict dimensional tolerances over outer diameter (OD), wall thickness, and straightness. This geometrical consistency ensures that standard flanges, valves, and manifold connectors fit precisely during industrial equipment assembly lines.
Highly Cost-Effective for Volume Utilities
For non-critical pressure lines, cooling loops, low-pressure steam systems, and structural machine frames, high-alloy or seamless pipes often exceed project budgets unnecessarily. EN 10217 P235TR1 provides verified pressure-holding compliance while maintaining an economical cost profile, maximizing your manufacturing margins.
Versatile Anti-Corrosion Finish Options
To protect your machinery against localized oxidation and atmospheric moisture, we offer a complete suite of factory coatings. This includes standard light oiling for short-term transit, black varnish painting, and high-durability Hot-Dip Galvanizing (HDG) for heavy-duty outdoor industrial utilities.
Technical Specifications
We supply and export certified EN 10217 P235TR1 welded steel tubes tailored to global industrial dimensions:
| Parameter | Specifications & Capabilities |
| Standard Compliance | EN 10217-1 (Pressure Purposes – Non-alloy Quality Steel) |
| Steel Grade & Mat. Number | P235TR1 (Material Number: 1.0254) |
| Outer Diameter (OD) | 21.3mm up to 610mm (1/2" to 24") |
| Wall Thickness (WT) | 2.0mm to 16.0mm |
| Manufacturing Method | High-Frequency Welded (HFW / ERW) |
| Standard Lengths | 5.8m, 6.0m, 11.8m, 12.0m, or custom pre-cut fixed lengths |
| End Execution | Square Cut Plain Ends (Deburred) or Factory Precision Beveled Ends |
Frequently Asked Questions (FAQ)
Q: What is the primary difference between P235TR1 and P235TR2 grades under EN 10217-1?
A: The core distinction lies in the impact testing and inspection requirements. P235TR1 is designed for standard pressure utilities where Charpy V-notch impact testing is not specified, making it highly cost-efficient. P235TR2, on the other hand, mandates strict low-temperature impact energy testing (minimum 27 Joules at 0°C) and requires more intensive quality inspection controls (such as compulsory non-destructive testing of the weld seam), making it suited for higher-risk pressure vessels.
Q: Can EN 10217 P235TR1 tubes be safely utilized as boiler tubes?
A: No. For dedicated boiler systems, heat exchangers, and high-temperature pressure environments, European codes mandate the use of pipes certified under EN 10216 (Seamless) or EN 10217-2/EN 10217-5 (Welded tubes for elevated temperatures), which utilize high-temperature-stable steel grades like P235GH. P235TR1 is optimized explicitly for room-temperature or ambient fluid lines, cooling water arrays, and general mechanical industrial equipment.
Q: How does your mill verify the safety and pressure limits of the longitudinal weld seam?
A: Every single joint of our EN 10217 P235TR1 pipe undergoes a strict quality assurance protocol before delivery. This includes a mandatory Hydrostatic Test where the pipe is filled with water and held under high pressure to verify zero leakage. Additionally, we conduct online Eddy Current Testing (Non-Destructive NDT) across the full length of the weld seam to scan for internal micro-voids, lack-of-fusion, or surface imperfections.
Q: What documentation is provided to satisfy international engineering audits and CE marking?
A: All our shipments are accompanied by a fully traceable Mill Test Certificate (MTC) compliant with EN 10204 3.1. The certificate details the exact chemical composition breakdown (Carbon, Silicon, Manganese, Phosphorus, Sulfur), heat melt identification numbers, and physical mechanical testing parameters (Tensile Strength, Yield Strength, and Elongation percentage), ensuring your equipment maintains full regulatory compliance.
BRISK STEEL
As an ISO 9001 certified manufacturer and global exporter, our facility integrates advanced rolling mills, automated sizing lines, and rigorous non-destructive testing (NDT) to ensure every tube delivers maximum field performance. We provide comprehensive EN 10204 3.1 Material Test Certificates (MTC) with every shipment, ensuring complete traceability and compliance with your local building codes.
