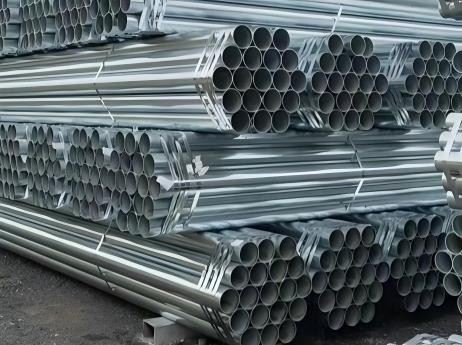

Tianjin Brisk Steel is one of the manufacturers of ASTM A53 Galvanized Steel Pipes in China. Our products are mainly exported to the Middle East, Southeast Asia, Europe, New Zealand, and other regions.If you would like to learn more about our products, feel free to contact us and send your purchase list.
Technical Overview: The ASTM A53 Specification
The ASTM A53 specification covers seamless and welded black and hot-dipped galvanized steel pipe. Understanding the standard classifications ensures you source the exact configuration for your project:
- Type E (Electric Resistance Welded): Grades A and B. The longitudinal weld seam is created via high-frequency induction, providing exceptional wall thickness uniformity and cost-efficiency.
- Type S (Seamless): Grades A and B. Produced via hot piercing and extrusion, removing the weld seam entirely for higher-pressure threshold environments.
- Grade B Performance: Grade B is the most widely specified option in the market, providing a minimum yield strength of 240 MPa (35,000 psi) and excellent ductility for bending and welding.
Key Benefits of Our Hot-Dip Galvanized (HDG) Protection
1. Superior 360° Corrosion Barrier
Our pipes undergo a meticulous hot-dip galvanizing process, completely submerging the steel into molten zinc. This creates an iron-zinc alloy metallurgical bond that covers both the internal and external surfaces, offering total protection against moisture, acidic soils, and harsh environments.
2. Sacrificial Galvanic Protection
Zinc acts as a sacrificial anode. Even if the outer layer suffers a deep scratch or mechanical abrasion during field handling, the surrounding zinc will naturally corrode first, shielding the underlying carbon steel from rust propagation.
3. Reduced Maintenance Costs & Extended Lifespan
While bare carbon steel requires continuous painting and maintenance, galvanized steel can last up to 50 years in rural environments and 20 to 25 years in severe urban or coastal settings without needing structural upkeep.
4. High Adaptability for Field Fabrication
Despite the zinc coating, our ASTM A53 Grade B pipes maintain excellent weldability, threading precision, and grooving consistency, allowing your field crews to install connections swiftly.
Technical Specifications & Size Portfolio
We supply a comprehensive range of ASTM A53 galvanized pipes configured to meet global plumbing, mechanical, and structural standards:
| Parameter | Specifications & Capabilities |
| Standard Compliance | ASTM A53 / A53M, ASME B36.10M |
| Available Types & Grades | Type E (Welded/ERW) & Type S (Seamless) | Grade A & Grade B |
| Outer Diameter (OD) | 1/2" to 26" (21.3mm – 660mm) |
| Wall Thickness Schedules | SCH 40 (Standard), SCH 80 (Extra Strong), SCH 160, SCH XXS |
| Zinc Coating Thickness | Standard compliance to ASTM A53 requirements (Min. average weight ≥ 550 g/m2) |
| End Configurations | Plain Ends (Square Cut), Beveled Ends (for welding), Threaded & Coupled (NPT/BSPT) |
Core Global Applications
The extreme versatility of ASTM A53 hot-dip galvanized pipes makes them a staple across multi-sector international projects:
- Water & Low-Pressure Fluid Distribution: Non-potable industrial water loops, HVAC chilled water systems, and municipal drainage setups.
- Fire Sprinkler Networks: Certified, heavy-duty fire protection water supply piping for commercial complexes and industrial warehouses.
- Structural Framing & Infrastructure: Handrails, safety barriers, scaffolding, greenhouse frameworks, and outdoor sign gantries.
- Oil & Gas Downstream Utility lines: Low-pressure transport loops, compressed air systems, and structural conduit protection.
Comprehensive Quality Control & Export Compliance
Every single length of galvanized steel pipe undergoes rigorous testing before leaving our facility to guarantee absolute site safety:
- Hydrostatic Pressure Testing: 100% of our pipes are hydro-tested according to the mandatory ASTM A53 thresholds to guarantee a complete, leak-proof seal.
- Non-Destructive weld testing (NDT): Continuous online Eddy Current or Ultrasonic monitoring for Type E welded configurations.
- Zinc Coating Weight Verification: Magnetic gauge testing to verify uniform zinc thickness and adherence metrics.
- Traceable Documentation: All shipments include fully detailed EN 10204 3.1 Mill Test Certificates (MTC) mapping chemical heat data and physical mechanical results.
Frequently Asked Questions (FAQ)
Q: Can ASTM A53 Grade B Galvanized Pipe be used for potable (drinking) water lines?
A:Historically, galvanized pipes were used for home plumbing, but modern municipal standards generally restrict galvanized pipes to industrial, non-potable water systems, fire protection lines, and structural projects. This is because over decades of continuous contact with minerals in drinking water, internal zinc can slowly dissolve or develop mineral scale buildup.
Q: What is the benefit of ordering Threaded and Coupled (T&C) ends?
A: Ordering pipes with factory-cut Threaded and Coupled ends saves considerable on-site preparation time. The pipe ends are precisely machined with tapered NPT or BSPT threads, and a heavy-duty steel coupling is pre-installed on one end. This allows workers to join pipes mechanically with simple pipe wrenches, eliminating the need for specialized welding gear or strict field coatings.
Q: How do you prevent "white rust" on galvanized pipes during maritime ocean freight?
A: "White rust" (zinc hydroxycarbonate) forms when fresh zinc layers are exposed to high moisture and salt spray without adequate air circulation. To prevent this during long sea voyages, our pipes receive a protective passivation chemical treatment immediately after galvanizing. Furthermore, we wrap the bundles securely in waterproof plastic or PVC woven blankets and store them under deck whenever possible.
Q: Do you support third-party inspections (TPI) prior to container loading?
A: Yes, absolutely. We welcome independent pre-shipment audits from world-renowned inspection firms including SGS, Bureau Veritas (Bv), Intertek, and TÜV. They can inspect raw material certificates, check actual zinc coating weights, measure dimensional tolerances, and verify final seaworthy packaging before loading.
BRISK STEEL
Keep your projects moving forward with fully certified materials and robust logistics. Contact our international sales engineering division today to check our live inventory, request specific custom wall thicknesses, or receive a competitive FOB or CIF quotation tailored directly to your preferred port.
